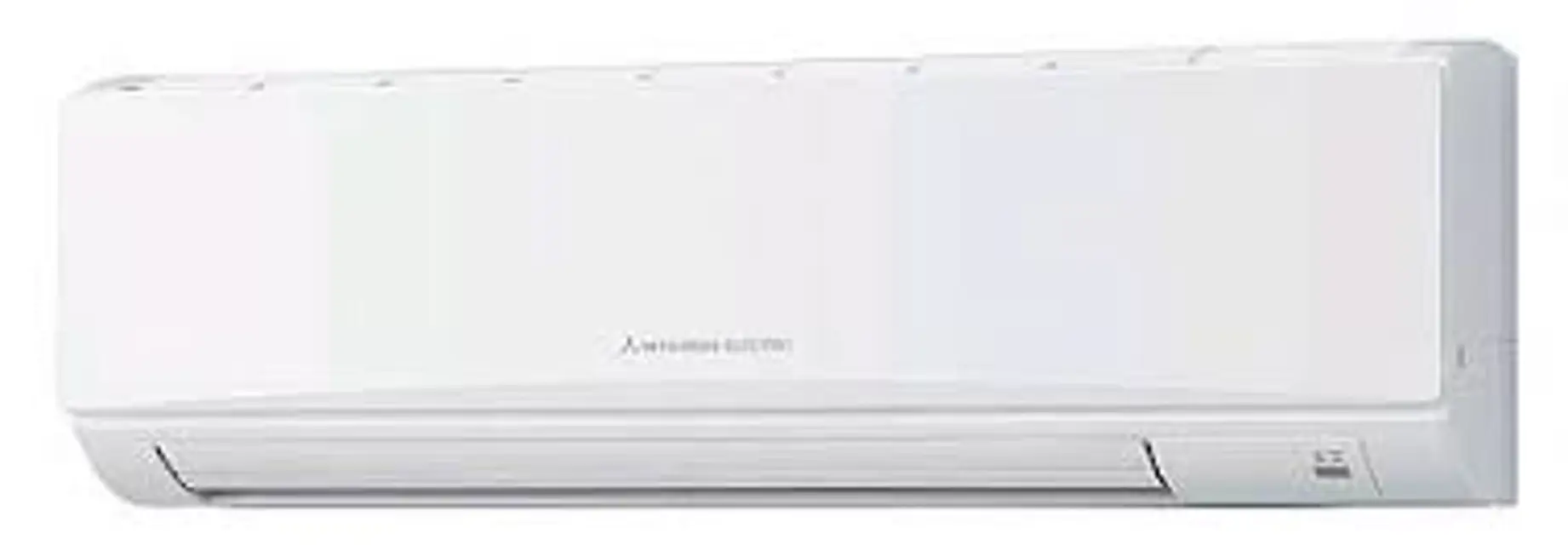

Mitsubishi Split-Type, Heat Pump Air Conditioner PKFY-P63VKM-E
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type, Heat Pump Air Conditioner Model PKFY-P63VKM-E
Integrate maintenance plans directly into your work orders in MaintainX.
Room Temperature Thermistor Disassembling
Remove the panel and corner box
Remove the electrical box covers
Remove the room temperature thermistor
Disconnect the connector (CN20) on the indoor controller board
Nozzle Assembly and Drain Hose Disassembling
Remove the panel and corner box
Remove the electrical box covers
Disconnect the vane motor connector (CN151) on the indoor controller board
Pull out the drain hose from the nozzle assembly, and remove nozzle assembly
Upload a photo of the disassembled nozzle assembly and drain hose
Indoor Fan Motor and Flow Fan Disassembling
Remove the panel and the corner box
Remove the electrical box
Remove the nozzle assembly
Remove the water cut
Remove the screw fixing the line flow fan
Remove 5 screws fixing the motor bed
Remove the lead wire of pipe thermistor from the hook of motor bed
Remove the screw fixing motor band
Remove the motor bed together with fan motor and motor band
Liquid Pipe and Gas Pipe Thermistors Disassembling
Remove the panel and the corner box
Remove the electrical box covers
Remove the water cut
Remove the liquid pipe thermistor and gas pipe thermistors
Disconnect the connector (CN44) (CN2G) on the indoor controller board
Sign off on the disassembly process
Indoor Unit Refrigirant Charging - R410A
Cautions for service
Refrigerant recovered from the unit completely
Refrigerant not released in the air
Cycle charged with specified amount of refrigerant
Filter drier installed
Additional refrigerant charge
Cylinder for R410A is a syphon type
Charging performed with the cylinder of syphon stood vertically
Service tools
