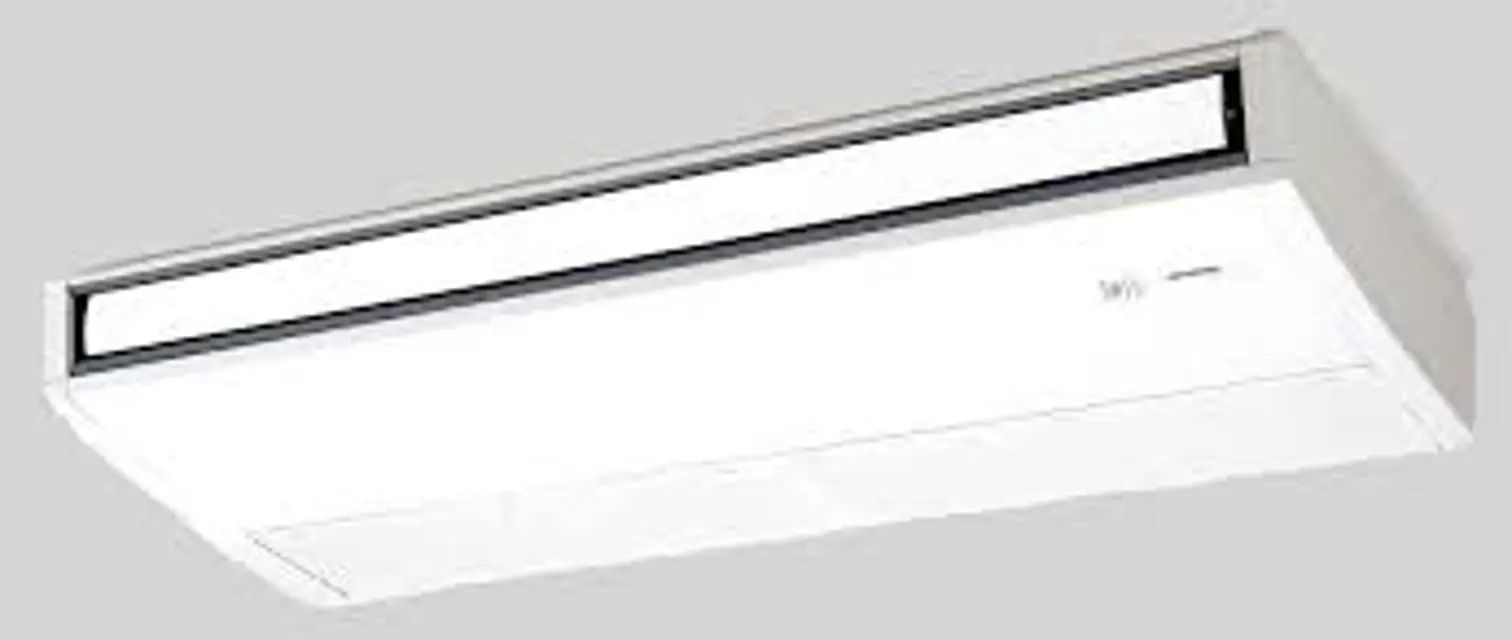

Mitsubishi Split-Type, Heat Pump Air Conditioner PCFY-P36NKMU-E
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type, Heat Pump Air Conditioner Model PCFY-P36NKMU-E
Integrate maintenance plans directly into your work orders in MaintainX.
Drain Pan Disassembling
Remove the air intake grille
Upload a photo of the removed air intake grille
Remove the side panel (right and left)
Upload a photo of the removed side panels
Remove the under panel
Upload a photo of the removed under panel
Remove the screws of the right and left side drain pan
Upload a photo of the removed screws
Remove 2 insulation in centre of the drain pan
TH21 Thermistor Disassembling
Remove the air intake grille
Remove the screw from the beam and remove the beam
Remove 2 screws from the electrical cover, and remove the electrical cover
Remove 2 screws from the electrical box and pull the electrical box downward. Temporarily secure the electrical box using 2 hooks in the back of electrical box
Disconnect the connector CN20 (red) from the indoor controller board
Remove the sensor holder from the electrical box and remove the thermistor form the holder
Sign off on the thermistor disassembling
Fan Disassembling
Remove the air intake grille
Upload a photo of the removed air intake grille
Remove the screw from the beam and remove the beam
Upload a photo of the removed beam
Remove 2 screws from the electrical cover, and remove the electrical cover
Remove 2 screws from the electrical box and pull the electrical box downward
Temporarily secure the electrical box using 2 hooks in the back of electrical box
Remove 2 screws from the left side beam and remove the beam
Upload a photo of the removed left side beam
TH22 and TH23 Disassembling
Remove the air intake grille
Upload a photo of the removed air intake grille
Remove the left and right side panels
Upload a photo of the removed side panels
Remove the under panel
Upload a photo of the removed under panel
Remove the drain pan
Upload a photo of the removed drain pan
Disconnect the connector CN44 (white) from the indoor controller board
Fan Motor and Right Side Fan Disassembling
Remove the air intake grille
Remove the screw from the beam and remove the beam
Remove 2 screws from the electrical cover, and remove the electrical cover
Remove 2 screws from the electrical box and pull the electrical box downward
Temporarily secure the electrical box using 2 hooks in the back of electrical box
Remove the lower casing while pressing the 4 catches of the casing (right side of the fan motor)
Loosen the 2 set screws (2 hexagon set screws) of connecting joint and slide the fan motor to the left
Remove the screw for motor earth wire
Remove the motor piece (left and right, each 1 screw)
Parts for Mitsubishi Split-Type, Heat Pump Air Conditioner PCFY-P36NKMU-E
Access the parts list for your equipment in MaintainX.
Drain Pump Kit
PAC-SH84DM-E
High Efficiency Filter
PAC-SH90KF-E
External Heat Adapter
PAC-YU25HT
I-See Sensor
PAC-SH91MK-E
Wireless Remote Controller with I-See Sensor
PAR-SA92MW-E
Drain Pump Kit
PAC-SH84DM-E
High Efficiency Filter
PAC-SH90KF-E
External Heat Adapter
PAC-YU25HT
I-See Sensor
PAC-SH91MK-E
Wireless Remote Controller with I-See Sensor
PAR-SA92MW-E
Drain Pump Kit
PAC-SH84DM-E
High Efficiency Filter
PAC-SH90KF-E
External Heat Adapter
PAC-YU25HT
I-See Sensor
PAC-SH91MK-E
Wireless Remote Controller with I-See Sensor
PAR-SA92MW-E
