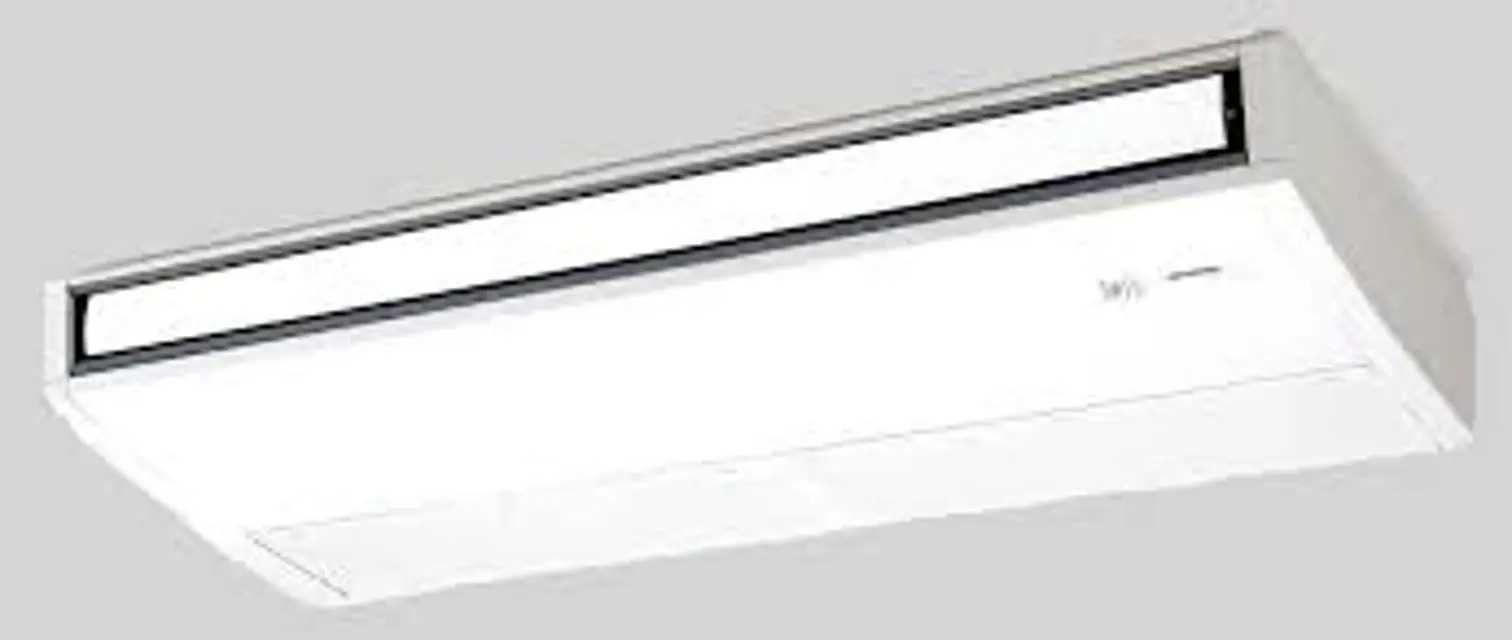

Mitsubishi Split-Type, Heat Pump Air Conditioner PCFY-P15NKMU-E
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type, Heat Pump Air Conditioner PCFY-P15NKMU-E
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type, Heat Pump Air Conditioner PCFY-P15NKMU-E
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type, Heat Pump Air Conditioner Model PCFY-P15NKMU-E
Integrate maintenance plans directly into your work orders in MaintainX.
Fan Motor and Right Side Fan Disassembling
Remove the air intake grille
Remove the screw from the beam and remove the beam
Remove 2 screws from the electrical cover, and remove the electrical cover
Remove 2 screws from the electrical box and pull the electrical box downward
Temporarily secure the electrical box using 2 hooks in the back of electrical box
Remove the lower casing while pressing the 4 catches of the casing (right side of the fan motor)
Loosen the 2 set screws (2 hexagon set screws) of connecting joint and slide the fan motor to the left
Remove the screw for motor earth wire
Remove the motor piece (left and right, each 1 screw)
Auto Vane Disassembling
Remove the intake grille
Upload a photo of the removed intake grille
Remove the right side panel
Upload a photo of the removed right side panel
Remove the vane motor and cover
Upload a photo of the removed vane motor and cover
Slide the auto vane to the vane motor side
Upload a photo of the slid auto vane
Remove 2 axes from each vane support pushing the vane support to the vane sleeve side
Heat Exchanger and LEV Disassembling
Remove the air intake grille
Upload a photo of the removed air intake grille
Remove the beam
Upload a photo of the removed beam
Remove the electrical cover
Upload a photo of the removed electrical cover
Pull the electrical box downward
Upload a photo of the pulled down electrical box
Disconnect the connector CN60 (white) from the indoor controller board
Fan Disassembling
Remove the air intake grille
Upload a photo of the removed air intake grille
Remove the screw from the beam and remove the beam
Upload a photo of the removed beam
Remove 2 screws from the electrical cover, and remove the electrical cover
Remove 2 screws from the electrical box and pull the electrical box downward
Temporarily secure the electrical box using 2 hooks in the back of electrical box
Remove 2 screws from the left side beam and remove the beam
Upload a photo of the removed left side beam
Guide Vane Disassembling
Remove the intake grille
Upload a photo of the removed intake grille
Remove the side panel (right and left)
Upload a photo of the removed side panels
Remove the under panel
Upload a photo of the removed under panel
Remove the drain pan
Upload a photo of the removed drain pan
Remove the screw from the guide vane
Parts for Mitsubishi Split-Type, Heat Pump Air Conditioner PCFY-P15NKMU-E
Access the parts list for your equipment in MaintainX.
Drain Pump Kit
PAC-SH83DM-E
High Efficiency Filter
PAC-SH88KF-E
External Heat Adapter
PAC-YU25HT
I-See Sensor
PAC-SH91MK-E
Wireless Remote Controller with I-See Sensor
PAR-SA92MW-E
Drain Pump Kit
PAC-SH83DM-E
High Efficiency Filter
PAC-SH88KF-E
External Heat Adapter
PAC-YU25HT
I-See Sensor
PAC-SH91MK-E
Wireless Remote Controller with I-See Sensor
PAR-SA92MW-E
Drain Pump Kit
PAC-SH83DM-E
High Efficiency Filter
PAC-SH88KF-E
External Heat Adapter
PAC-YU25HT
I-See Sensor
PAC-SH91MK-E
Wireless Remote Controller with I-See Sensor
PAR-SA92MW-E
