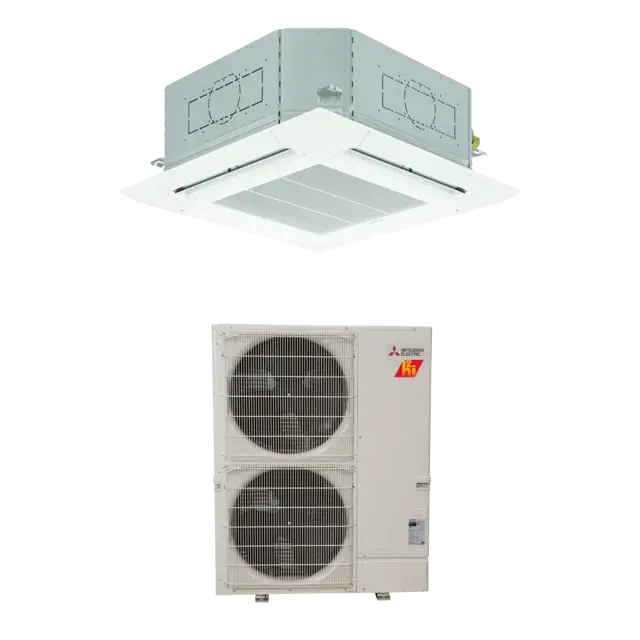

Mitsubishi Indoor Unit PLA-A24EA7
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Indoor Unit Model PLA-A24EA7
Integrate maintenance plans directly into your work orders in MaintainX.
Indoor Unit Turbo Fan Replacement
Warning: Ensure the unit is powered off before starting the procedure.
Electrical box removed
Upload a photo of the removed electrical box
Bell mouth removed
Upload a photo of the removed bell mouth
Nut and square washer removed
Upload a photo of the removed nut and square washer
Turbo fan removed
Upload a photo of the removed turbo fan
Indoor Unit Electrical Box Replacement
Remove the electrical box cover
Upload a photo of the removed electrical box cover
Remove the connectors
Remove the electrical box fixing screws
Upload a photo of the removed screws
Electrical parts in the electrical box: Terminal block for earth and reactor, Indoor controller board, Thermistor (TH)
Remove the electrical box
Reassemble the parts in reverse order
Sign off on the electrical box replacement
Indoor Unit Air Intake Grille Replacement
2. Removing the air intake grille
(1) Slide the knob of air intake grille toward the arrow to open the air intake grille. (See Figure 1.)
(2) Remove the hook of drop prevention strap from the panel.
(3) Remove the air intake grille.
Reassemble the parts in reverse order;
Indoor Unit Room Temperature Thermistor Replacement
Warning: Ensure the power is off before starting the procedure
Removed the electrical box cover
Upload a photo of the removed electrical box cover
Disconnected the connector CN20 (Red) from the indoor controller board
Upload a photo of the disconnected connector CN20
Removed the room temperature thermistor with its holder
Upload a photo of the removed room temperature thermistor
Reassembled the parts in reverse order
Sign off on the thermistor replacement
Indoor Unit Drain Pump Replacement
Warning: Ensure the unit is powered off before starting the procedure
Drain pan removed
Hose band cut and hose removed
Drain pump clamp loosened
Drain pump removed (tapping screw 4×10: 2 screws/2 hooks)
Reassemble the parts in reverse order
Drain pump reassembled
Sign off on the drain pump replacement
