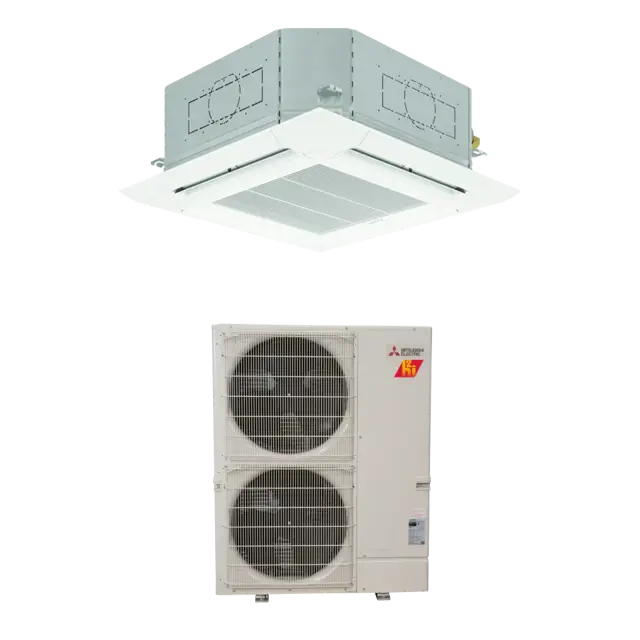

Mitsubishi Indoor Unit PLA-A12EA7
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Indoor Unit PLA-A12EA7
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Indoor Unit PLA-A12EA7
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Indoor Unit Model PLA-A12EA7
Integrate maintenance plans directly into your work orders in MaintainX.
Indoor Unit Air Intake Grille Replacement
Removing the air intake grille
Slide the knob of air intake grille toward the arrow to open the air intake grille
Remove the hook of drop prevention strap from the panel
Remove the air intake grille
Reassembling the parts
Reassemble the parts in reverse order
Sign off on the air intake grille replacement
Indoor Unit Panel Replacement
Upload Photo 1 of the electrical box fixing cover
Electrical box fixing cover removed
Refer to procedure 5 for disconnecting the connector for vane motor (CNV: White)
Connector for vane motor disconnected
Upload Figure 4 of the 4 corner panel fixing screws (tapping screw 4×16)
4 corner panel fixing screws loosened
Upload Figure 4 of the corner panel sliding to the direction of the arrow 1
Corner panel removed
Upload Photo 10 of the 4 installation screws (M5×28)
Indoor Unit Room Temperature Thermistor Replacement
Remove the electrical box cover
Upload a photo of the removed electrical box cover
Disconnect the connector CN20 (Red) from the indoor controller board
Upload a photo of the disconnected connector CN20
Remove the room temperature thermistor with its holder
Upload a photo of the removed room temperature thermistor with its holder
Reassemble the parts in reverse order
Upload a photo of the reassembled parts
Sign off on the thermistor replacement
Indoor Unit Drain Pump Replacement
Step 1: Remove the drain pan
Drain pan removed successfully
Step 2: Cut the hose band and remove the hose
Hose band cut and hose removed successfully
Step 3: Loosen the clamp of the drain pump
Clamp of the drain pump loosened successfully
Step 4: Remove the drain pump (tapping screw 4×10: 2 screws/2 hooks)
Drain pump removed successfully
Step 5: Reassemble the parts in reverse order
Indoor Unit Drain Pan Replacement
Upload a photo of the electrical box before removal
Electrical box removed successfully
Upload a photo of the bell mouth before removal
Bell mouth removed successfully
Upload a photo of the drain pan before removal
Drain pan removed successfully
Sign off on the drain pan replacement
