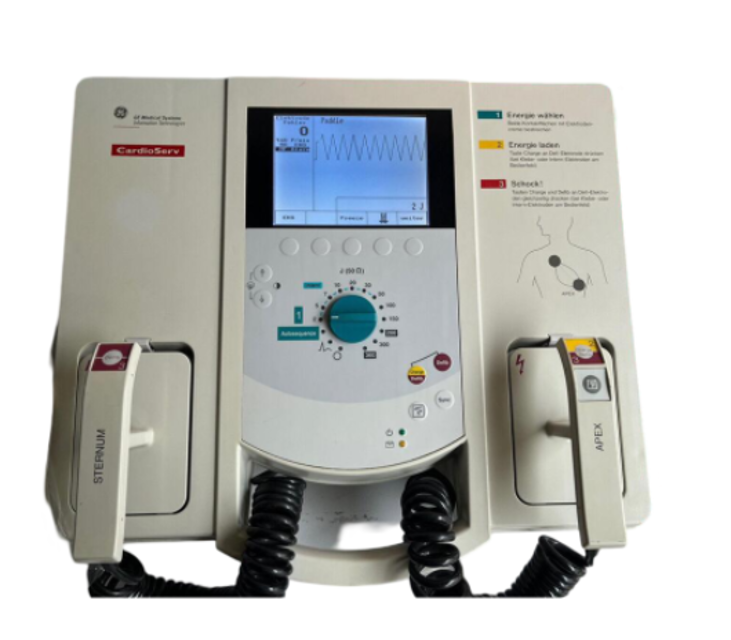

Marquette Hellige Defibrillator / Cardiac Resuscitation Monitor CardioServVF

Connect the electrode cable to the Defi

Use a standard ECG signal generator to generate signals

Energy Setting and Synchronization

Set energy selector switch to any energy setting

Check if the SYNC function appears in the display

Defibrillator Paddles and Charging

Ensure Defi paddles are locked into place in the CardioServ holder

Connect the electrode cable to the Defi

Use a standard ECG signal generator to generate ECG signals

Does the ECG and heart rate appear on the display?

Ensure the following prerequisites are met

Set energy selector switch to 360 joules

Verify energy is available after approximately 9 seconds

Trigger energy charge operation by pressing the Charge Defi key in the electrode handle

Did a beep sound indicating charge operation completion?

Release the defibrillation pulse within the next 30 seconds using the Charge Defi key and the Defib key

Ensure the device is powered off

Gather necessary tools (screwdriver, etc.)

Disconnect the 50-pin flat strip cable

Disconnect the 2-pin 12-V power supply cord

Disconnect the flat strip cable connected to the thermal-array printhead and motor

Connect SPO2 power cord 701 240 31 to a SPO2 probe on the Defi.

Connect finger probe to test subject (tester).

Switch simulator power switch to off.

Connect connector cable between simulator and CardioServ monitor.

Set SpO2 to 95.5% using the white Nellcor scale.
