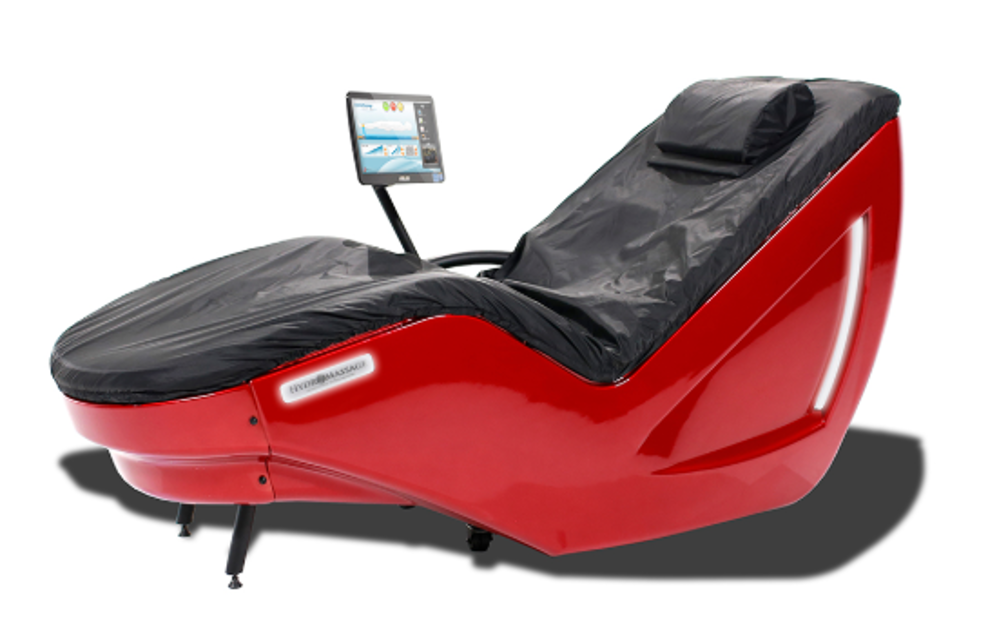

WellnessSpace Brands HydroMassage Bed 450L

Add 20 gallons of DISTILLED WATER

Call 727-536-5566 for assistance if needed

Position HydroMassage® unit in final location (centered on wall)

Ensure proper wiring and clearance

Complete visual inspection under the lounge for water drips

Locate and remove rear casters (gray casters towards rear of frame with single wheels)

Use a ½" socket or an open-ended wrench to remove the nuts on inside of frame

Ensure rear panel can be installed after removing rear casters

Confirm 4-black double-wheel casters are not removed from the Bed/Lounge

Use ONLY HydroMassage Defoamacide

Add Defoamacide with distilled water

Check Touchscreen pivot screws (2)

Tighten with 5/32 hex key wrench if needed to secure Touchscreen in place

Ensure not to over tighten (restricts the motion of the Touchscreen)

Test pressure bars functionality

Change massage speed and verify functionality

Launch entertainment options and verify functionality

Press green START button to begin cooling system test

Record water temperature after starting the system

Is the water temperature above 88 degrees F°?

Enter the lower massage limit if water is colder than 80 degrees F°
