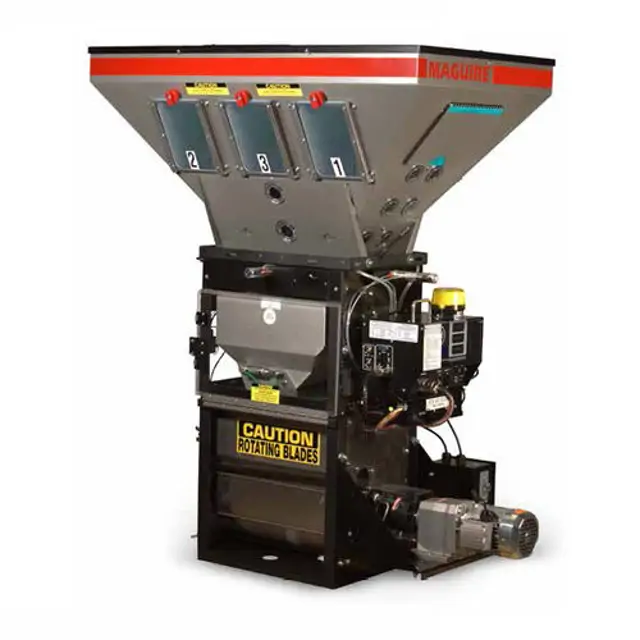

Maguire Weigh Scale Blender WSB-140

Locate the adjustment screw at the rear of the sensor

Use a very small regular screwdriver for adjustment

Turn the adjustment screw clockwise until the LED turns ON

Turn the adjustment screw counter-clockwise until the LED turns OFF

Continue turning counter-clockwise for one full revolution after the LED turns off

Does the LED turn on when material is present in front of the sensor?

Describe any additional adjustments made due to material dust or static

Sensor Position Adjustment (200 and 400 Series Models Only)

Test slide valve movement during LOTO without air pressure

Check slide valve components for wear and adjustment

Inspect mix blades for damage or wear

Replace damaged, worn, or sharp mix blades if necessary

Inspect load cell for physical damage

Is the zero weight reading within acceptable range?

Is the full weight reading within acceptable range?

Adjust the weigh bin dump valve to close softly

Locate the needle valve on or behind the solenoid bank or on the weigh bin air cylinder

Adjust the needle valve for a soft close

Check for wear at the hinge points

Ensure the Dump Flap overlaps the forward edge enough to prevent dribble when closed

Verify space at the rear of the flap allows for static build up of pellets without interfering with closing

Pneumatic and Electrical Lockout/Tagout (LOTO)

Pneumatically lockout the blender

Electrically lockout the blender

Is the pneumatic system fully depressurized?

Is material evacuation required?

Evacuate material from the following locations if necessary

Access Manual Operations via touchscreen controller
