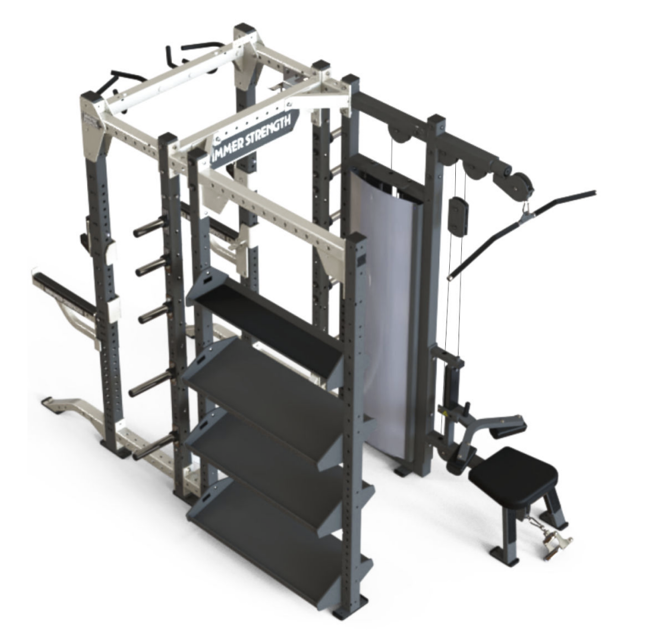

Life Fitness Gym Equipment HDU-CCOR

Verify technician is Life Fitness certified

Ensure cable is threaded at least 1/2 inch (12.7mm) into termination points at headplate (A) and frame/carriage (B)

Check if model is equipped with a bayonet portal for thread engagement check

Attempt to pass a 7mm Allen wrench through the bayonet portal to check thread engagement

Tighten jam nut to 20-25 FT-LBS (27.2 - 34.0 Nm) using a 24mm wrench

Check if cable tension is sufficient to keep it seated in the pulley without lifting the head plate

Loosen jam nuts and threaded plugs if head plate is lifted

Remove screws and damaged insert

Replace damaged insert and reassemble components

Tighten components to specified torque

Safety — Safety Information — Inspection

Examine all accessories for damage or wear

Is any accessory damaged or worn?

Is any equipment damaged or has worn or broken parts?

Ensure only Life Fitness replacement parts are used

Check for fractures in the cable casing

Inspect for twisting or binding within the casing

Check for frayed or exposed wire rope

Inspect for flattened sections of the cable

Check for permanently bent sections

Ensure ends are not separating from the cable assembly

Inspect straps for Power Rack Flexible Bar Catches for damage

Is there any strap showing signs of damage?

Replace any damaged strap immediately
