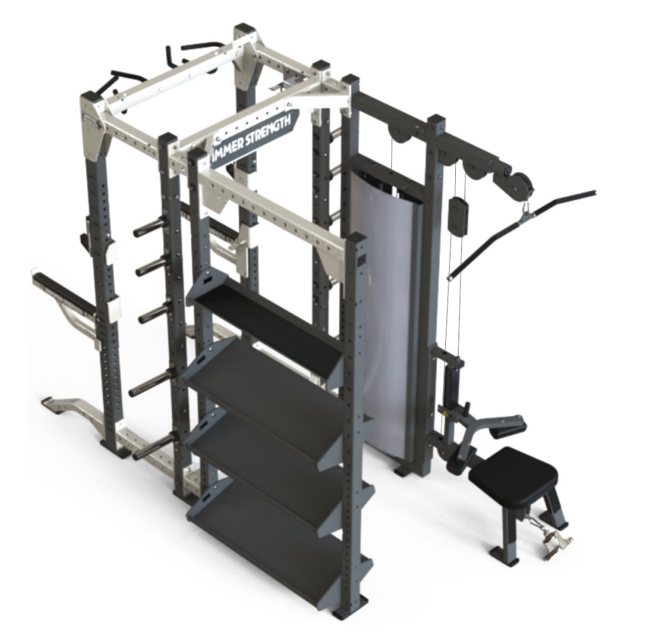

Life Fitness Gym Equipment HDU-CCM

Inspect all accessories, connecting links, and carabiner clips

Check anchors and re-tighten to 30 Foot-Pounds (45Nm) if needed

Clean upholstery with an approved or compatible cleaner

Approved and Compatible Cleaners

Select approved cleaner for use

Apply cleaner to a microfiber cloth before cleaning

Ensure PureGreen 24 is used for at least 2 minutes for general disinfection

Apply polishing compound (e.g., car wax) to frame

Remove shoe scuffs from powder coated surfaces

Remove screws and damaged insert

Replace damaged insert and reassemble components

Tighten components to specified torque

Verify technician is Life Fitness certified

Ensure cable is threaded at least 1/2 inch (12.7mm) into termination points at headplate (A) and frame/carriage (B)

Check if model is equipped with a bayonet portal for thread engagement

Attempt to pass a 7mm Allen wrench through the portal to check thread engagement

Tighten jam nut to 20-25 FT-LBS (27.2 - 34.0 Nm) using a 24mm wrench

Check if cable tension is appropriate to keep it seated in the pulley without lifting the head plate

If head plate is lifted, loosen jam nuts and threaded plugs until head plate rests on the weight plate below

Replace cable at first sign of any of the following

Describe any additional observations or actions taken
