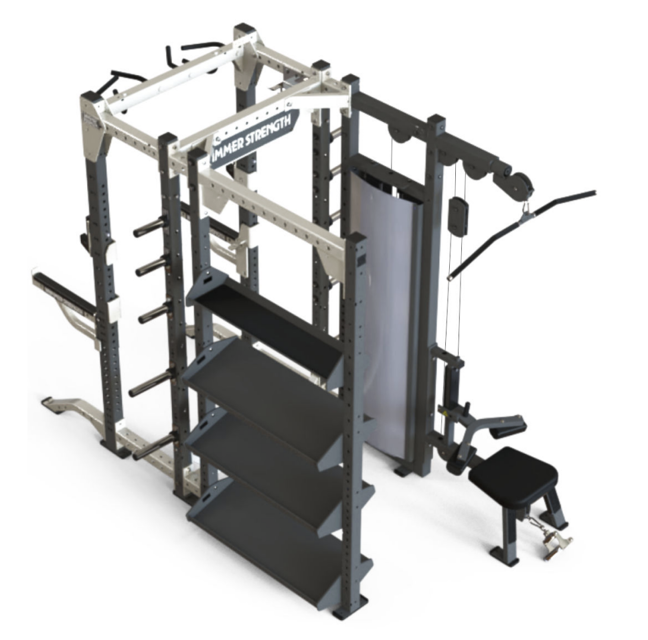

Life Fitness Gym Equipment HDU-ADCC

Inspect all accessories, connecting links, and carabiner clips

Check anchors and re-tighten to 30 Foot-Pounds (Imperial) or 45Nm (Metric) if needed

Clean upholstery with an approved or compatible cleaner

Approved and Compatible Cleaners

Ensure PureGreen 24 was used for at least 2 minutes for general disinfection

Ensure PureGreen 24 was used for at least 10 minutes for fungus and viral control

Remove screws and damaged insert

Tighten components to specified torque

Fill in paint chips with manufacturer's touch-up paint

Apply polishing compound (e.g., car wax)

Remove shoe scuffs from powder coated surfaces

Verify technician is Life Fitness certified

Ensure cable is threaded at least 1/2 inch (12.7mm) into termination points at headplate (A) and frame/carriage (B)

Check if model is equipped with a bayonet portal for thread engagement check

Attempt to pass a 7mm Allen wrench through the bayonet portal to check thread engagement

Tighten jam nut to 20-25 FT-LBS (27.2 - 34.0 Nm) using a 24mm wrench when proper thread engagement is reached

Check if cable tension is sufficient to keep it seated in the pulley without lifting the head plate

Loosen jam nuts and threaded plugs if head plate is lifted, until it rests on the weight plate below
