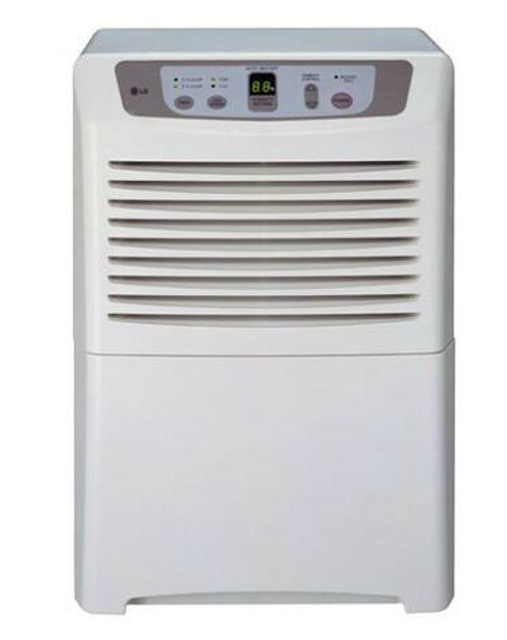

LG Dehumidifier DH404E

Remove the following parts according to the procedure above

Remove screws that fasten the Control box

Remove screws on all sides of the cabinet

Remove the screw fastening the earth wire inside the control box

Remove the screw fastening the control box

Unhook the control box from the hook on the shroud

Remove the bucket (See Figure 9)

Pull out the air filter (See Figure 10)

Discharge the refrigerant using a refrigerant Recovery System

Unbraze the suction and discharge tubes at the compressor connections

Remove the nuts and washers fastening the compressor

Check that all parts are removed

Dispose of waste materials properly

Disconnect the sensor assembly from the PWB(PCB) ASSEMBLY, MAIN

Remove the screw which fastens the humidity sensor

Remove the thermistor from the holder

Disconnect the switch wires from the micro switch assembly

Verify all components are removed

Remove the screws fastening the front grille

Pull the front grille forward and upward

Remove the screws securing the rear grille
