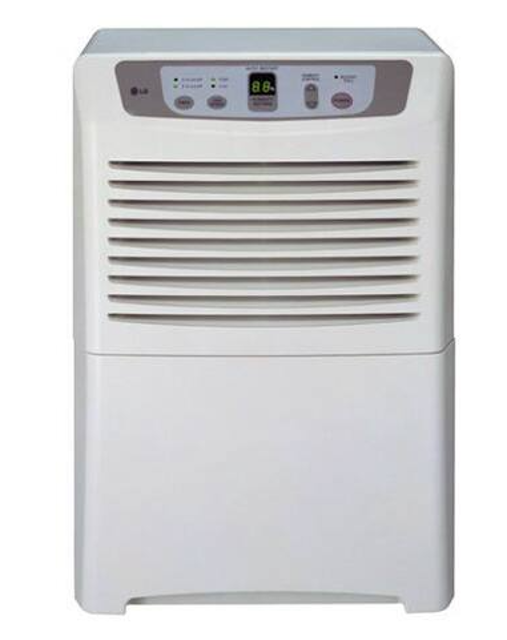

LG Dehumidifier DH304

Turn the nut left and pull out the Fan by hand carefully

Remove 2 screws that fasten Heat Exchange

Lift the Heat Exchange and open it around 45 degrees clockwise carefully

Unfasten 3 screws that secure the Motor and earth wire

Remove the screws fastening the front grille

Pull the front grille forward and upward

Remove the screws securing the rear grille

Discharge the refrigerant using a refrigerant Recovery System

Unbraze the suction and discharge tubes at the compressor connections

Remove the nuts and washers fastening the compressor

Remove the insulation on the Heater/Evaporator (H/E) assembly

Pierce the pinch-off tube to discharge the refrigerant, using a refrigerant recovery system

Remove 2 screws between the housing assembly and the H/E

Lift the H/E and open the H/E around 45 degree counterclockwise carefully

Unbraze each of interconnecting tubes of the evaporator and condenser carefully

Remove the H/E assembly from the orifice

Unbraze the capillary tube at the connections of the condenser and evaporator

Discharge the refrigerant using a refrigerant Recovery System

Unbraze the suction and discharge tubes at the compressor connections after purging the unit completely

Remove the screw or nut fastening the terminal cover

Disconnect the lead wire from the overload protector or PTC assembly

Remove the overload protector (OLP) or PTC assembly

Ensure all tools are accounted for

Dispose of any waste materials properly
