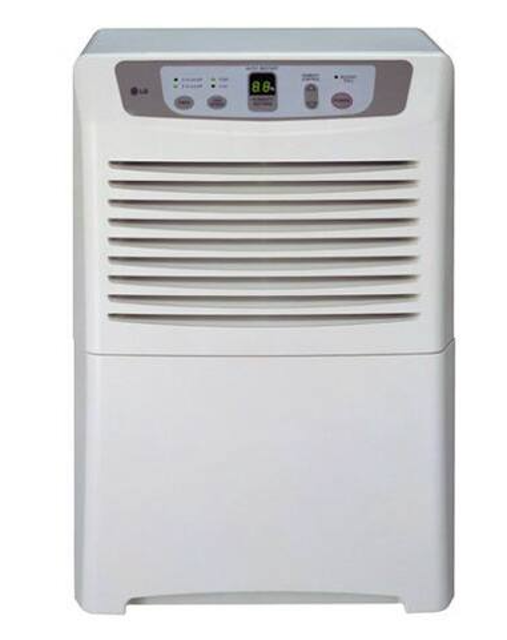

LG Dehumidifier LD50EL

Remove the screws fastening the front grille

Pull the front grille forward and upward

Remove the screws securing the rear grille

Disconnect the housing of the COIL ASSEMBLY, SOLENOID from the PCB(PWB) ASSEMBLY, MAIN

Remove the screw that fastens the COIL ASSEMBLY, SOLENOID

Pull the COIL ASSEMBLY, SOLENOID out upwards

Check that all parts are in place

Inspect the COIL ASSEMBLY, SOLENOID for any visible damage

Ensure the work area is clean after assembly

Discharge the refrigerant using a refrigerant Recovery System

Unbraze the suction and discharge tubes at the compressor connections after purging the unit completely

Remove the nuts and washers fastening the compressor

Check that all parts are removed

Dispose of waste materials properly

Remove the insulation on the Heater/Evaporator (H/E) assembly

Pierce the pinch-off tube to discharge the refrigerant using a refrigerant recovery system

After discharging the refrigerant completely, remove 2 screws between the housing assembly and the H/E

Lift the H/E and open the H/E around 45 degree counterclockwise carefully

Unbraze each of interconnecting tubes of the evaporator and condenser carefully

Remove the H/E assembly from the orifice

Unbraze the capillary tube at the connections of the condenser and evaporator

Remove 4 screws between the condenser and evaporator

Check that all parts are removed and accounted for

Turn the Humidity Control off (Mechanical type) or press the power button off (Electronic type)
