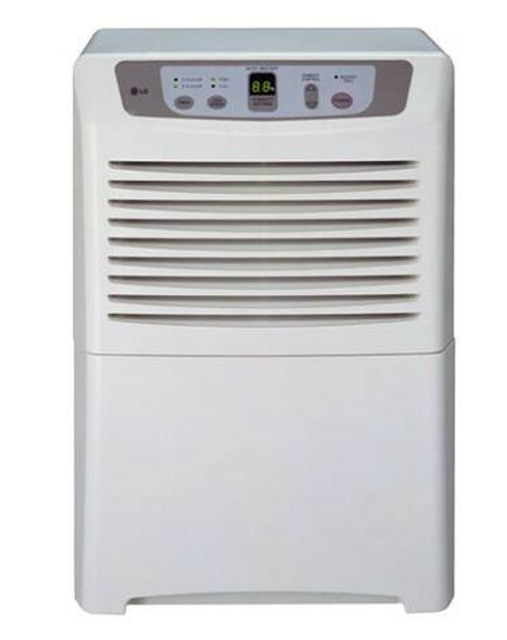

LG Dehumidifier LD65EL

Turn the nut left and pull out the Fan by hands carefully.

Remove 2 screws that fasten Heat Exchange.

Lift the Heat Exchange and open it around 45 degrees clockwise carefully.

Unfasten 3 screws that secure the Motor and earth wire.

Turn the Humidity Control off or press the power button off

Discharge the refrigerant system using a refrigerant recovery system

Component Removal and Preparation

Remove the desired component and unbraze the pinch-off tubes

Solder service valves into the pinch-off tube ports, leaving the valves open

Solder the pinch-off tubes with service valves

Close the valve and leave it in place for subsequent procedures

Connect the vacuum pump as illustrated in Figure 31A

Discharge the refrigerant using a refrigerant Recovery System

Unbrace the Discharge and the Suction tube connected to the compressor carefully after purging the unit completely

Remove screws that fasten the H/E

Unfasten screws that secure the shroud on the sides and lift shroud from the drain pan

Unfasten 2 screws that secure the shroud on the sides

Unfasten screws that secure the drain pan to base pan

Disconnect the sensor assembly from the PWB(PCB) ASSEMBLY, MAIN

Remove the screw which fastens the humidity sensor

Remove the thermistor from the holder

Disconnect the switch wires from the micro switch assembly

Verify all components are removed
