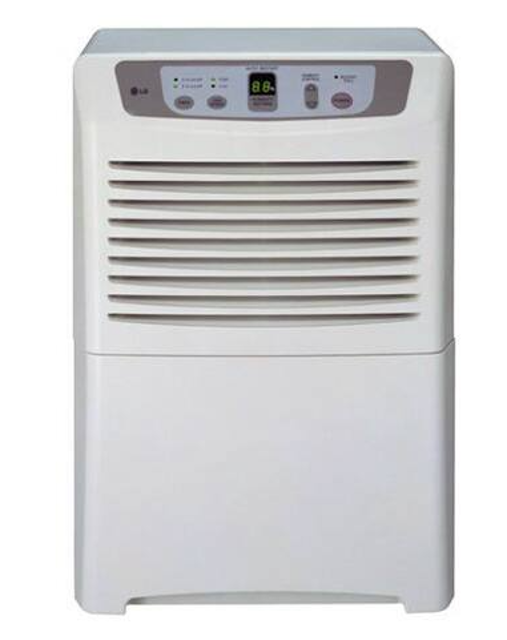

LG Dehumidifier DH400M
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for LG Dehumidifier DH400M
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
LG Dehumidifier DH400M
Create an account to install this asset package.
Maintenance Plans for LG Dehumidifier Model DH400M
Integrate maintenance plans directly into your work orders in MaintainX.
Mechanical Type Control Panel Disassembly
Disconnection of Components
Disconnect components from PWB(PCB) ASSEMBLY, MAIN
Knob and Switch Removal
Pull out the knob assembly
Remove the nut fastening the SWITCH ASSEMBLY, ROTARY
Remove the knob of the rotary switch by pulling it upward
Pull out the rocker switch by pushing the hooks on both sides
Display Assembly Removal
Pull out the PWB(PCB) ASSEMBLY, DISPLAY after turning over both hooks of the display cover
Fan / Motor Disassembly
Fan Removal
Turn the nut left and pull out the Fan by hands carefully.
Heat Exchange Disassembly
Remove 2 screws that fasten Heat Exchange.
Lift the Heat Exchange and open it around 45 degrees clockwise carefully.
Motor Disassembly
Unfasten 3 screws that secure the Motor and earth wire.
Remove the Motor.
Reference Figures
Cabinet / Control Box Disassembly
Remove the Bucket, the Air filter and Front grille
Remove the screw fastening the Control box
Remove screws on all sides of the cabinet
Lift the Cabinet from the base
Remove the screw fastening the earth wire inside the control box
Remove the screw fastening the control box and unhook it from the shroud
Front Case / Rear Grille Disassembly
Front Grille Removal
Remove the screws fastening the front grille
Pull the front grille forward and upward
Rear Grille Removal
Remove the screws securing the rear grille
Remove the rear grille
Compressor Disassembly
Discharge the refrigerant using a refrigerant Recovery System
Unbraze the suction and discharge tubes at the compressor connections after purging the unit completely
Remove the nuts and washers fastening the compressor
Remove the compressor
Check that all parts are removed
Post disassembly cleanup
Clean the work area
Dispose of waste materials properly
Parts for LG Dehumidifier DH400M
Access the parts list for your equipment in MaintainX.
Power Cord Assembly
6411A20001Z
Switch, Rocker
6600FX5001G
Motor Assembly
4681A20040J
Capacitor
0CZZA20005N
Compressor (Rotary), Set
2520UCAS003
Power Cord Assembly
6411A20001Z
Switch, Rocker
6600FX5001G
Motor Assembly
4681A20040J
Capacitor
0CZZA20005N
Compressor (Rotary), Set
2520UCAS003
Power Cord Assembly
6411A20001Z
Switch, Rocker
6600FX5001G
Motor Assembly
4681A20040J
Capacitor
0CZZA20005N
Compressor (Rotary), Set
2520UCAS003
