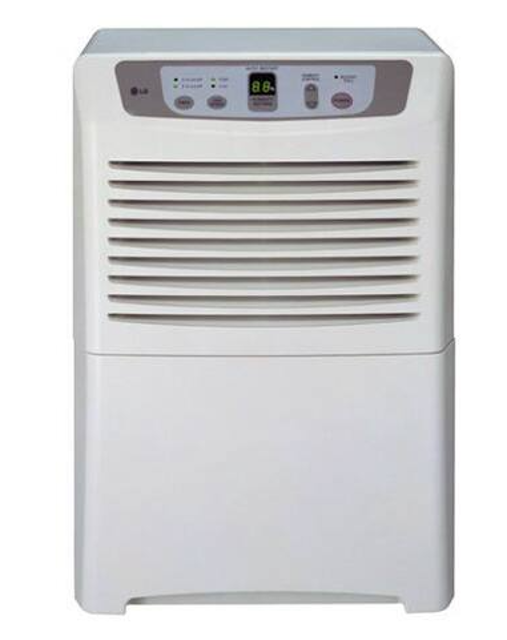

LG Dehumidifier DH504EL

Remove the insulation on the Heater/Evaporator (H/E) assembly

Pierce the pinch-off tube to discharge the refrigerant, using a refrigerant recovery system

After discharging the refrigerant completely, remove 2 screws between the housing assembly and the H/E

Lift the H/E and open the H/E around 45 degree counterclockwise carefully

Unbraze each of interconnecting tubes of the evaporator and condenser carefully

Remove the H/E assembly from the orifice

Unbraze the capillary tube at the connections of the condenser and evaporator

Remove 4 screws between the condenser and evaporator

Check that all parts are removed and accounted for

Remove the Bucket, the Air filter and Front grille

Remove the screw fastening the Control box

Remove screws on all sides of the cabinet

Remove the screw fastening the earth wire inside the control box

Remove the screw fastening the control box and unhook it from the shroud

Discharge the refrigerant using a refrigerant Recovery System

Unbrace the Discharge and the Suction tube connected to the compressor carefully after purging the unit completely

Remove screws that fasten the H/E

Unfasten screws that secure the shroud on the sides and lift shroud from the drain pan

Unfasten 2 screws that secure the shroud on the sides

Unfasten screws that secure the drain pan to base pan

Unfasten 2 screws that secure the drain pan to base pan

Pull the drain pan backward then take it up from the base

Turn the nut left and pull out the Fan by hands carefully

Remove screws that fasten Heat Exchange

Lift the Heat Exchange and open it around 45 degrees clockwise carefully

Unfasten screws that secure the Motor and earth wire

Discharge the refrigerant using a refrigerant Recovery System

Unbraze the suction and discharge tubes at the compressor connections after purging the unit completely

Remove the nuts and washers fastening the compressor

Ensure all tools are accounted for

Dispose of any waste materials properly
