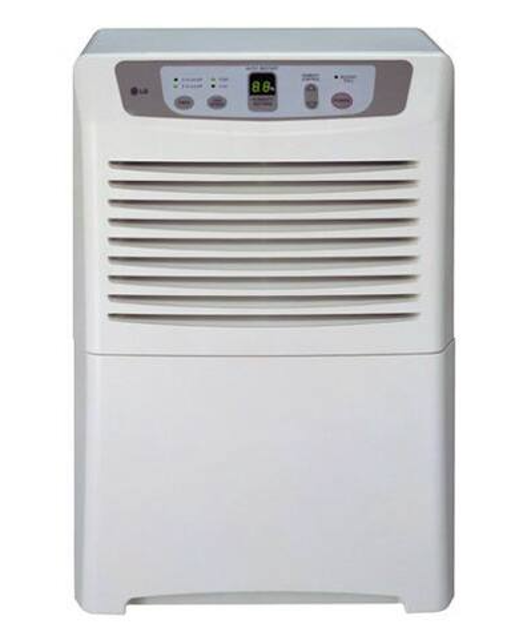

LG Dehumidifier LD40E
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for LG Dehumidifier LD40E
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
LG Dehumidifier LD40E
Create an account to install this asset package.
Maintenance Plans for LG Dehumidifier Model LD40E
Integrate maintenance plans directly into your work orders in MaintainX.
Compressor Disassembly
Discharge the refrigerant using a refrigerant Recovery System
Unbraze the suction and discharge tubes at the compressor connections
Remove the nuts and washers fastening the compressor
Remove the compressor
Check that all parts are removed
Post disassembly cleanup
Clean the work area
Dispose of waste materials properly
Bucket / Air Filter Disassembly
Turn the Humidity Control off or press the power button off
Disconnect the power supply
Remove the bucket
Pull out the air filter
Sensor Assembly Disassembly
Disconnect the sensor assembly from the PWB(PCB) ASSEMBLY, MAIN
Remove the screw which fastens the humidity sensor
Remove the thermistor from the holder
Disconnect the switch wires from the micro switch assembly
Verify all components are removed
Post disassembly cleanup
Clean the work area
Dispose of any waste materials
Front Case / Rear Grille Disassembly
Front Grille Removal
Remove the screws fastening the front grille
Pull the front grille forward and upward
Rear Grille Removal
Remove the screws securing the rear grille
Remove the rear grille
Cabinet / Control Box Disassembly
Remove the Bucket, the Air filter and Front grille
Remove 1 screw that fastens the Control box
Remove 8 screws on all sides of the cabinet
Lift the Cabinet from the base
Remove the screw fastening the earth wire inside the control box
Remove 1 screw that fastens the control box and unhook it from the shroud
Parts for LG Dehumidifier LD40E
Access the parts list for your equipment in MaintainX.
Power Cord Assembly
6411A20001Z
Motor Assembly
4681A20040J
Capacitor
0CZZA20005N
Compressor,Set
2520UCAS003
OLP
6750U-L013A
Power Cord Assembly
6411A20001Z
Motor Assembly
4681A20040J
Capacitor
0CZZA20005N
Compressor,Set
2520UCAS003
OLP
6750U-L013A
Power Cord Assembly
6411A20001Z
Motor Assembly
4681A20040J
Capacitor
0CZZA20005N
Compressor,Set
2520UCAS003
OLP
6750U-L013A
