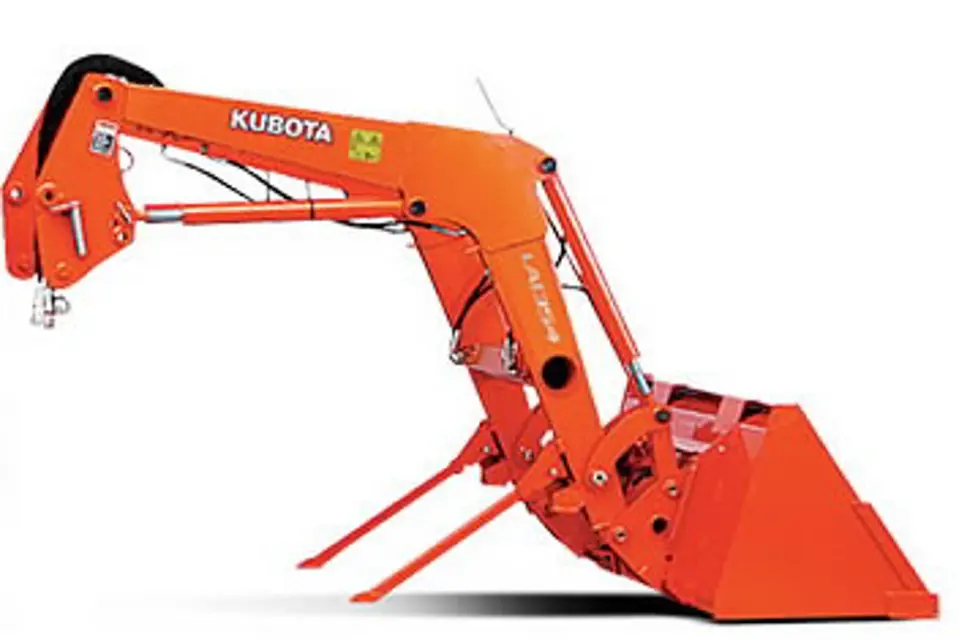

Kubota Front Loader LA1055

- When checking and repairing, park the tractor on flat ground and apply the parking brake.

- When checking and repairing, lower the bucket and stop the engine.

Checking Main Frame Bolt Torque

• Never operate front loader with a loose main frame.

• Any time bolts and nuts are loosened, retighten to specified torque.

• Check all bolts and nuts frequently and keep them tight.

!CAUTION - When checking and repairing, park the tractor on flat ground and apply the parking brake. - When checking and repairing, lower the bucket and stop the engine.

After 20 to 30 hours of initial loader operation, re-tighten all mounting bolts and nuts to the required torque value as follows.

Main frames bolts (M16) (Front axle frame) - 226 N·m/23.0 kgf·m/166 lbf·ft

Main frames nuts (M16) (Rear brackets) - 226 N·m/23.0 kgf·m/166 lbf·ft

Sign off on the maintenance check

!CAUTION - When checking and repairing, park the tractor on flat ground and apply the parking brake. - When checking and repairing, lower the bucket and stop the engine.

Is the tractor parked on flat ground?

Is the bucket lowered and the engine stopped?

Inject grease in all grease fitting with a hand grease gun.

Lubricate joints of control lever linkage.

- When checking and repairing, park the tractor on flat ground and apply the parking brake.

- When checking and repairing, lower the bucket and stop the engine.

Checking Transmission Fluid Level

1. Check the oil level at the gauge.

2. If the level is too low, add new oil to the prescribed level at the oil.

- Use only KUBOTA UDT or SUPER UDT fluid. Use of other oils may damage the transmission or hydraulic system. Refer to "3. LUBRICANTS" on page G-3.
