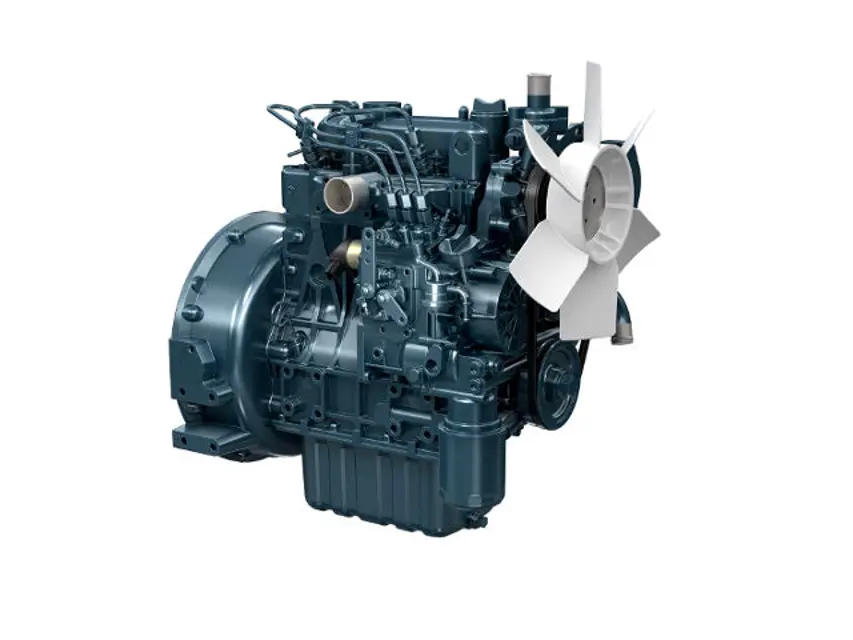

Kubota Diesel Engine D1105

Warning: Never apply oil to the dry type air cleaner element.

Evacuator valve opened to get rid of large particles of dust and dirt.

Inside air cleaner wiped clean.

Avoid touching the element except when cleaning.

Dry dust blown off from the element with compressed air.

Pressure of compressed air used.

Element soaked in detergent, washed, rinsed and dried naturally when carbon or oil adheres.

Element inspected for damage after drying.

Element replaced every year or every six cleanings.

WARNING! To avoid personal injury or death: Check or replace the fuel pipes after stopping the engine. Broken fuel pipes can cause fires.

If the clamp band is loose, apply oil to the screw of the band, and tighten the band securely.

Are the fuel pipes, made of rubber, worn out?

If the fuel pipes, made of rubber, become worn out, replace them and clamp bands every 2 years.

Are the fuel pipes and clamp bands found worn or damaged before 2 years' pass?

If the fuel pipes and clamp bands are found worn or damaged before 2 years' pass, replace or repair them at once.

After replacement of the pipes and bands, air-bleed the fuel system.

Important: When the fuel pipes are not installed, plug them at both ends with clean cloth or paper to prevent dirt from entering. Dirt in the pipes can cause fuel injection pump malfunction.

WARNING! To avoid personal injury or death: Be careful not to let the battery electrolyte contact your body or clothing. Wear eye protection and rubber gloves, since the diluted sulfuric acid solution burns skin and eats holes in clothing.

DANGER! Do not use or charge the battery if its fluid level stands below the LOWER (lower limit level) mark. Otherwise, the battery component parts may deteriorate earlier than expected, which may shorten the battery's service life or cause an explosion.

WARNING! To avoid personal injury or death: When the battery is being activated, hydrogen and oxygen gases in the battery are extremely explosive. Keep open sparks and flames away from the battery at all times, especially when charging the battery.

IMPORTANT! Connect the charger positive terminal to the battery positive terminal, and negative to the negative. When disconnecting the cable from the battery, start with the negative terminal first. When connecting the cable to the battery, start with the positive terminal first. If reversed, the contact of tools on the battery may cause a short.

Check the battery's fluid level

Is the battery's fluid level between the UPPER and LOWER levels?

Upload a photo of the battery's fluid level

Is the battery being activated safely, with no open sparks and flames nearby?

Enter the battery's voltage reading

WARNING! To avoid personal injury or death: Be sure to stop the engine and remove the key before checking the belt tension. Be sure to reinstall the detached safety shield after maintenance or checking.

Applied moderate thumb pressure to belt between the pulleys

Belt tension in the proper range

IMPORTANT: If belt is loosen or damaged and the fan is damaged, it could result in overheats or insufficient charging. Correct or replace belt.

Measure tension with a sonic tension meter

Measurement done properly according to the operation manual of the device being used

Measurement done immediately after installing the belt without rotating the pulleys

Fuel filter cartridge replacement

Replace the fuel filter cartridge with a new one

Apply fuel oil thinly over the gasket

Tighten the cartridge into position by hand-tightening only

IMPORTANT! Replace the fuel filter cartridge periodically to prevent wear of the fuel injection pump plunger or the injection nozzle, due to dirt in the fuel

NOTE! The fuel filter cartridge and water separator should be replaced more earlier according to the fuel classification in use
