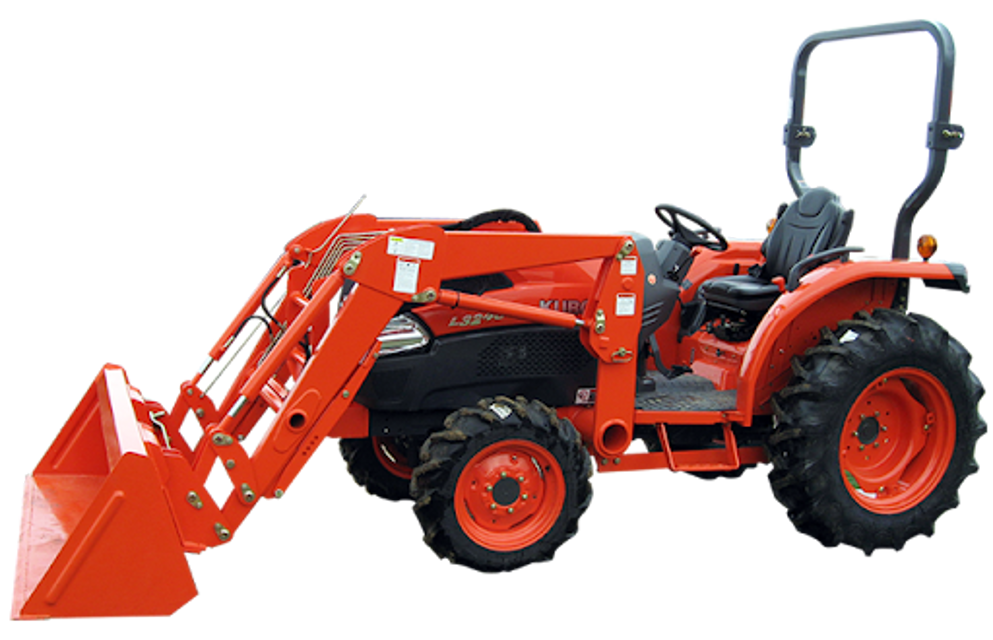

Kubota FRONT LOADER LA514

• When checking and repairing, park the tractor on flat ground and apply the parking brake.

• When checking and repairing, lower the bucket and stop the engine.

1. Inject grease in all grease fitting with a hand grease gun.

1. Lubricate joints of control lever linkage.;

• When checking and repairing, park the tractor on flat ground and apply the parking brake.

• When checking and repairing, lower the bucket and stop the engine.

Checking Transmission Fluid Level

1. Check the oil level at the gauge (1).

2. If the level is too low, add new oil to the prescribed level at the oil.

• Use only KUBOTA UDT or SUPER UDT fluid.

Use of other oils may damage the transmission or hydraulic system. Refer to “3. LUBRICANTS”.;

• When checking and repairing, park the tractor on flat ground and apply the parking brake.

• When checking and repairing, lower the bucket and stop the engine.

1. With the engine off and bucket on the ground, check all hydraulic hoses (1) for cuts or wear.

2. Check for signs of leaks and make sure all fittings are tight.

3. If defects are found, replace them.;
