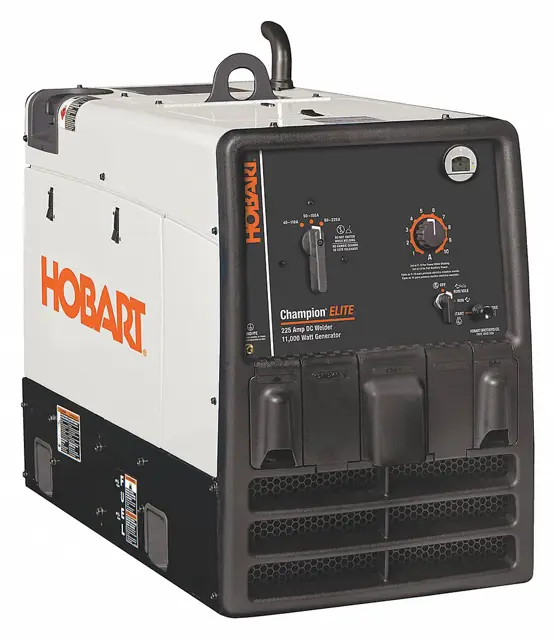

Hobart Engine-driven Welder/Generator Champion Elite 225

Create an account to install this asset package.

Maintenance Plans for Hobart Engine-driven Welder/Generator Model Champion Elite 225

Integrate maintenance plans directly into your work orders in MaintainX.

25 Hourly Engine Driven Welder / Generator Maintenance

Hazards

Hazards to be aware of

Stop engine before starting the maintenance

NOTICE – Do not run engine without air cleaner or with dirty element.; Engine damage caused by using a damaged element is not covered by the warranty.

Precleaner cleaned with soap and water solution and allowed to air dry completely?

1 tablespoon SAE 30 oil spread evenly into precleaner and excess oil squeezed out?

Element replaced if damaged, dirty, or oily?

Sign off on the maintenance

Run this procedure

8 Hourly Engine Driven Welder / Generator Maintenance

Check fuel and oil levels

Clean oil and fuel spills

Check all fluids daily. Engine must be cold and on a level surface. Unit is shipped with 10W-30 synthetic blend engine oil.

Follow run-in procedure in engine manual.

This unit has a low oil pressure shutdown switch. However, some conditions may cause engine damage before the engine shuts down.; Check oil level often and do not use the oil pressure shutdown system to monitor oil level.

Fuel

Open left side access door.

NOTICE – Engine flooding may occur if fuel level is above Max Fill Level on tank.

Add fresh fuel before starting engine the first time (see maintenance label for specifications).; Stop fueling when fuel level reaches Max Fill Level on tank. Do not top off tank.

Run this procedure

50 Hourly Engine Driven Welder / Generator Maintenance

Hazards

ELECTRIC SHOCK can kill.

Using a generator indoors CAN KILL YOU IN MINUTES.

FUEL can cause fire or explosion. ENGINE HEAT can cause fire.

EXHAUST SPARKS can injure.

MOVING PARTS can injure.

FLYING METAL OR DIRT can injure eyes.

RECYCLE.

Clean weld terminals

Run this procedure

500 Hourly Engine Driven Welder / Generator Maintenance

Warning: ELECTRIC SHOCK can kill. Using a generator indoors CAN KILL YOU IN MINUTES. FUEL can cause fire or explosion. ENGINE HEAT can cause fire. EXHAUST SPARKS can injure. MOVING PARTS can injure. FLYING METAL OR DIRT can injure eyes. RECYCLE.

Maintenance Label: Useful part numbers for different engine models

Spark plug: MILLER: 067007, Kohler: 1213202-S, Champion: RC-12YC, Gap: 0.030 in. (.76 mm). Use only resistor spark plugs and wires.

Tune-up and Filter Kit: CH730: MILLER: 230015, ECH730: MILLER: 284083, CH730 LP: MILLER: 252838 (Includes Air, Oil and Fuel Filters, and 2 Spark Plugs)

Check and replace weld cables and spark plugs

Check and clean slip ring; To be done by factory authorized service agent

Check and replace brushes; To be done by factory authorized service agent

Sign off on the 500 Hourly Engine Driven Welder / Generator Maintenance

Run this procedure

200 Hourly Engine Driven Welder / Generator Maintenance

Replace unreadable labels

Check spark plug gap

Change oil filter

Replace fuel filter

Stop engine and let cool.

Oil Drain Valve
