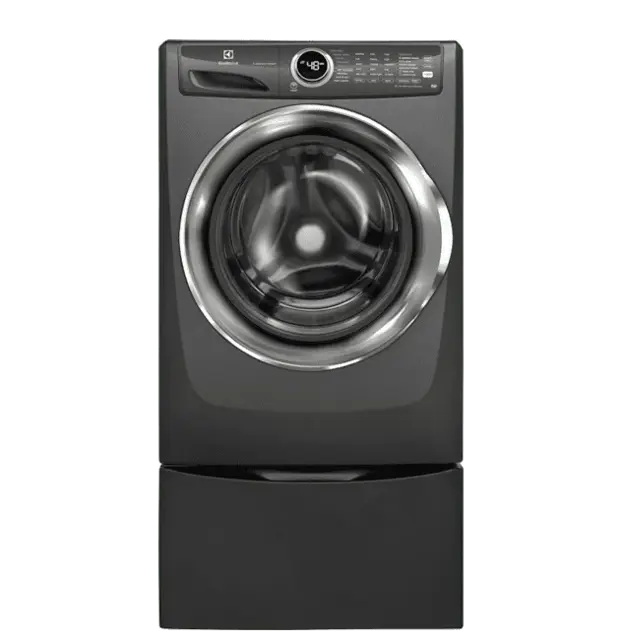

Electrolux Washer ESFL400

Create an account to install this asset package.

Maintenance Plans for Electrolux Washer Model ESFL400

Integrate maintenance plans directly into your work orders in MaintainX.

Washer Maintenance

Inside routine cleaning (preventative)

To help prevent odors or humidity accumulation leave the door open with the door stand ventilation feature (on select models) for a few hours after use or whenever the washer is not in use.

CAUTION

ENTRAPMENT and TIP-OVER HAZARD DO NOT leave the door open if there are small children or pets present. An open door could entice children to hang on the door or crawl inside the washer. If there are no small children present, you may leave the door ajar to prevent odor build up.

Inside cleaning (aggressive)

In cases where clean washer cycle along with care and cleaning of rubber gasket folds isn’t done, and severe odor or residue buildup have developed, follow the below cleaning procedure to help alleviate the problem.

Cleaning procedure-washer drum

Ensure the wash tub is empty. Open the detergent drawer and pour eight cups of bleach into the Main Wash detergent compartment. Select clean washer cycle as described previously in Inside Routine Cleaning (Preventative).

Upon cycle completion inspect the interior of the washer to see if the odor/residue has been eliminated. If any additional cleaning is required, repeat the above procedure. This may take several cycles depending on the severity of the odor/ residue. You may observe some remaining discoloration due to the long term effects of this residue.

Run this procedure

1 Monthly Washer Cleaning

To refresh or clean inside of washer

To clean and freshen the washer, perform the clean washer cycle. For best results perform the cycle once a month.

NOTE

Every 50 cycles, your washer will remind you to perform the clean washer cycle by illuminating the clean washer cycle indicator.

To begin the cycle, select the clean washer cycle. If installed, remove the LIQUID DETERGENT cup from the dispenser. REMOVE ALL ITEMS FROM WASH DRUM before filling the detergent compartment with one (1) cup of liquid chlorine bleach OR one (1) pouch of TideTM Washing Machine Cleaner. DO NOT use both. Press start/pause to begin.

IMPORTANT

Items left in washer while performing the clean washer cycle will cause a severe out-of-balance situation that could damage the washing machine.

For best results

Immediately follow up with a rinse & spin cycle. Select max spin with no detergent or bleach to help clear any residual bleach left after the clean washer cycle.

Run this procedure

5 Yearly Hoses Replacement

Warning: This procedure requires trained personnel with PPE!

Water inlet hoses free from water leaks

Water inlet hoses free from wear

Water inlet hoses free from cuts

Water inlet hoses free from corrosion

Water inlet hoses free from bulges

Are all hoses replaced?

When replacing hoses, refer to the Installation sections of this Use & Care guide for proper installation instructions.

Hoses properly installed without overtightening or cross threading the fittings

Run this procedure
