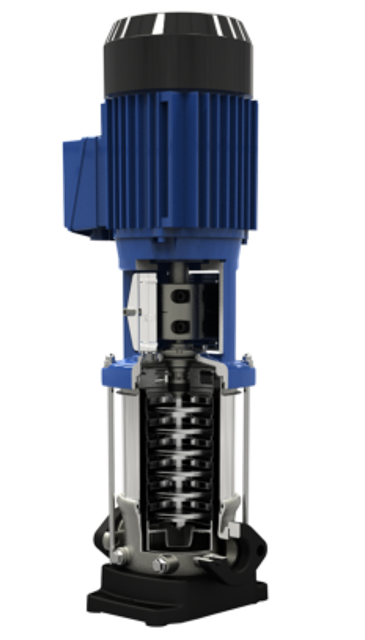

KSB SE & Co. KGaA High-Pressure In-Line Pump MOVITEC V(S)F 15B

Ensure only qualified personnel perform work on the pump set.

Verify the pump set has cooled down to ambient temperature.

Use suitable transport devices and lifting equipment for heavy components.

Observe all safety instructions and information.

Properly shut down the pump set.

Close the shut-off elements in suction and discharge line.

Drain the pump and release the pump pressure.

Suspend or support the motor to prevent it from tipping over.

Ensure the motor meets the following conditions

Remove retaining bracket 89-11.03, if applicable.

Align the motor on the drive lantern.

Screw in hexagon head bolts 901.02 or 901.04 and washer 554.02 or 554.04.

DANGER — Excessive Temperatures

Check the condition of the lubricant regularly

Check the rolling element bearings for running noises regularly

Verify grease quality for rolling element bearings

Enter the pump size and rotational speed to determine re-lubrication intervals

Is the pump design lubricated for life?

Re-lubricate motors with lubricating nipple every 2000 hours

Is the pump operated under extreme conditions (vibrations or high temperatures)?

Ensure compliance with safety regulations at the installation site.

Verify that the pump set is not energized before opening.

Perform maintenance work outside potentially explosive atmospheres.

Ensure the pump set cannot be started unintentionally.

Disconnect electrical connections before servicing the pump set.

Observe all relevant laws regarding hazardous fluids.

Wear safety clothing and a protective mask, if required.

Observe all legal regulations on the disposal of fluids posing a health hazard.

Collect and properly dispose of flushing fluid and any residues of the fluid handled.

Has the pump set been neutralised if it handled corrosive or flammable fluids?

Blow anhydrous inert gas through the pump to ensure drying if necessary.

Ensure the pump is not in operation before draining.
