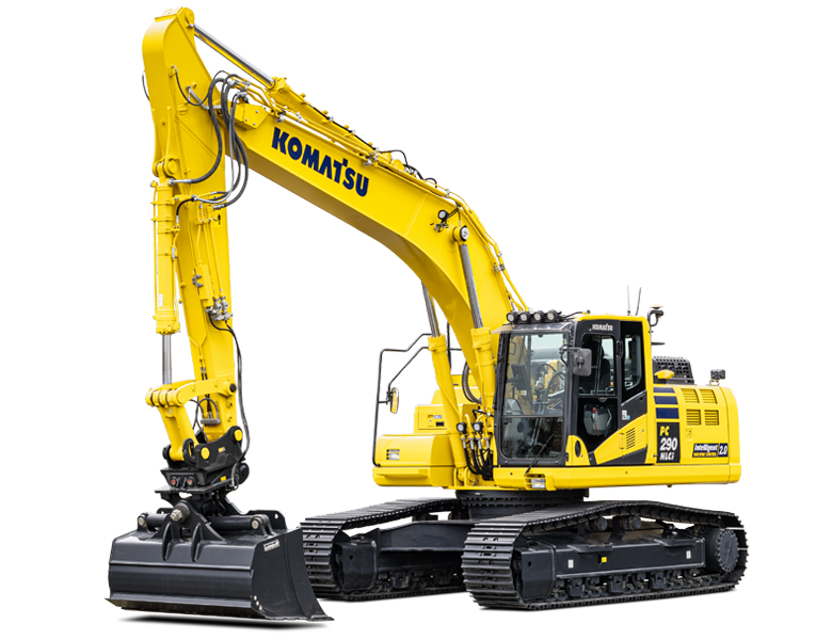

Komatsu Hydraulic Excavator PC290NLC-11

METHOD FOR CHANGING OIL IN ENGINE OIL PAN, REPLACING ENGINE OIL FILTER CARTRIDGE

Steps for Changing Oil and Replacing Filter

METHOD FOR REPLACING FUEL PREFILTER CARTRIDGE

Steps for Replacing Fuel Prefilter Cartridge

METHOD FOR CHECKING SWING PINION GREASE LEVEL, ADD GREASE

Steps for Checking Swing Pinion Grease Level and Adding Grease

METHOD FOR LUBRICATING SWING CIRCLE

METHOD FOR LUBRICATING WORK EQUIPMENT

NOTICE: If any abnormal noise is generated from any greasing point, perform greasing regardless of the greasing interval. Perform greasing every 10 hours for the first 50 hours operation on a new machine. After the machine is subjected to digging work in the water, be sure to grease the work equipment pins.

Machine parked on a level and firm ground?

Work equipment lowered to the ground and engine stopped?

By using a grease pump, pump in grease through the grease fittings shown by arrows.

Arm-Link connection pin greased?

Arm-Bucket connection pin greased?

Bucket cylinder rod end greased?

Maintenance for every 100, 250, 500 and 1000 hours service should be performed at the same time.

METHOD FOR CHANGING OIL IN HYDRAULIC TANK

• Immediately after the engine is stopped, its parts and oil are still very hot and may cause burn injury. Accordingly, wait until they have cooled down before starting the work.

• When removing the oil filler cap, the oil may spurt out. Rotate it slowly to release the internal pressure, then remove it with care.

If the machine is equipped with a hydraulic breaker, the hydraulic oil deteriorates faster than in the normal bucket digging operation.

WARNING: Immediately after the engine is stopped, its parts and oil are still very hot, and may cause burn injury. Accordingly, wait until they have cooled down before starting the work.

When using compressed air, there is a danger that dirt may scatter and cause personal injury. Always wear protective equipment such as protective eyeglasses and dust mask.

Preparation: Lower the work equipment to the ground and stop the engine.

Preparation: Turn the starting switch to ON (B) position.

Preparation: Set the lock lever to FREE position (F).

Preparation: Operate each work equipment control lever and attachment control pedal fully to the front, rear, right, and left a few times within 15 seconds to release the internal pressure in the hydraulic circuit.

Preparation: Set the lock lever to LOCK position (L).

Method for Replacing Additional Filter Element for Breaker: Loosen oil filler cap (F) slowly on the top of the hydraulic tank to release the internal pressure in the hydraulic tank.

Method for Replacing Additional Filter Element for Breaker: Set a container to receive the oil under the additional filter at the position pointed with the arrow.

Maintenance for every 100, 250, 500, 1000, 2000 and 4000 hours service should be performed at the same time.

METHOD FOR REPLACING FUEL SPRAY PREVENTION CAP

Steps for replacing fuel spray prevention cap

Ask your Komatsu distributor for replacement of the fuel spray prevention caps.

Sign off on the maintenance procedure
