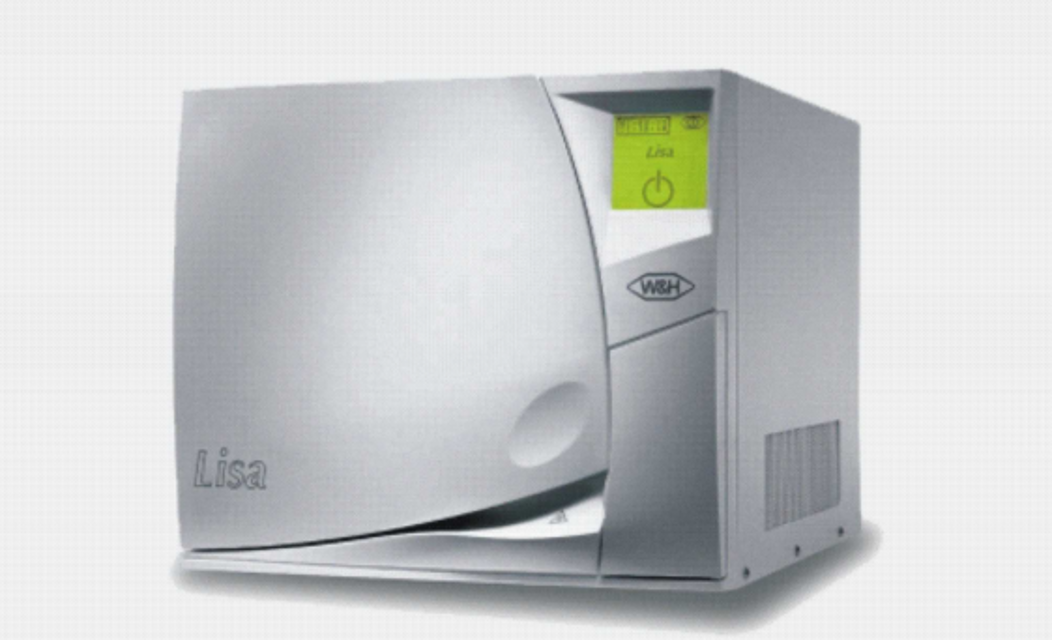

W&H Sterilization Water Steam Sterilizer LISA MB 22

Warning: Always wear appropriate PPE during the cleaning process.

Instruments cleaned immediately after use?

Ultrasonic cleaner used as per manufacturer's instructions?

All traces of disinfectant removed from the product?

Product rinsed thoroughly and dried?

Product lubricated as per manufacturer's instructions?

Sign off on the instrument cleaning

This procedure prevents the risk of infection during cleaning and maintenance.

♦ Dampen the instrument with a non-corrosive disinfectant (pH from 2.5 to 9) or with 70-80% ethyl alcohol.

♦ Comply with the disinfection reaction times recommended by the manufacturer.

DO NOT : Immerse or vaporise the instruments. Do not allow the disinfectant to come into contact with the instrument, poor rinsing, etc. Do not use cloths containing chlorhexidine or aldehydes.

If any traces of disinfectant are left on the instruments, the latter will become corrosive when heated. This may cause extensive damage during sterilization: oxidation, modification to the technical characteristics of seals, rubber, fibre optics, etc.

This procedure involves the removal of residues (blood, dentine, etc.) which adhere to critical areas such as spray outlets, fibre optics, etc.

Replacement of the 5 Solenoid valves.

Replacement of the vacuum pump membrane kit.

Replacement of the water filter.

Replacement of the steam generator heating element.

Cleaning the sterilization chamber.

Cleaning the sterilization chamber filter.

Cleaning the steam generator filter (EV5).

Check of the pneumatic connections.

Check the electrical connections.

Warning: Ensure the sterilizer is turned off and cooled down before starting the procedure

Bacteriological filter unscrewed

Upload a photo of the old filter

New filter inserted and screwed into position

Upload a photo of the new filter in position

Sign off on the filter replacement

Warning: Ensure the sterilizer is turned off and cooled down before starting the procedure

Door of the sterilizer fully opened

Seal seat cleaned with a cotton bud moistened with alcohol

Seal inserted in the correct sequence

Sign off on the sterilizer replacement
