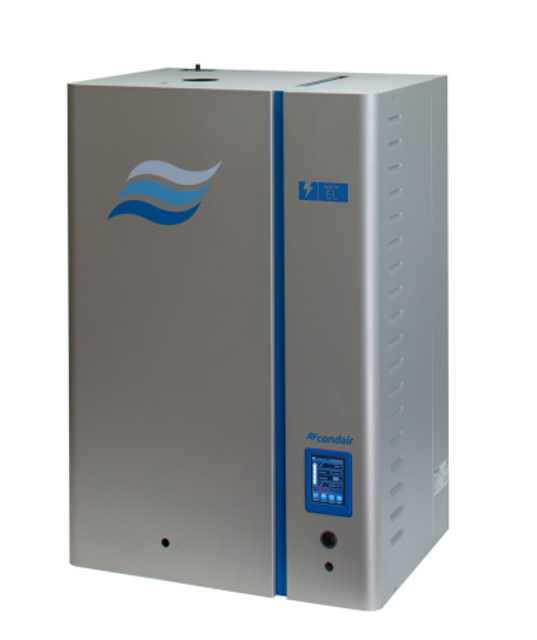

condair Electrode Steam Humidifier EL20

The Nortec EL steam humidifier control software monitors the performance of the cylinder and indicates when a cylinder is full of scale and no longer able to achieve full output.

When the control software detects the cylinder can no longer achieve full output, the "Cylinder Spent" warning message appears on the Home screen. Replace the steam cylinder(s) – refer to "Removal and Installation of Steam Cylinder" on page 66.

Note: If the steam cylinder is not replaced, and the maintenance counter is not reset within 72 hours (run time), a corresponding fault message appears.;

Refer to Figure 11 for visual guidance.

Turn the captive screw in each door panel counter-clockwise with a screwdriver.

Lift up the door panel slightly so that the tabs clear the notches in the cabinet.

Sign off on the door panel removal

Use only the cleaning agents described in the procedures below. Disinfectants may only be used if they do not leave behind toxic residue. Rinse all parts thoroughly with clean tap water after cleaning.

Follow all instructions, and observe the safety precautions stated below.

Risk of damage to the humidifier components!

Do not use solvents, aromatized or halogenized hydrocarbons, or other harsh chemicals for cleaning.;

Water Hoses: Use a rubber mallet to knock out any scale buildup in the hoses. Rinse the hoses thoroughly with hot tap water.

Fill valve: Use a soft-bristled brush (not wire brush) to carefully remove any scale buildup inside the fill valve and in the strainer.

Drain Valve - Valve Body: Use a soft-bristled brush (not wire brush) to remove any scale buildup inside the valve body of the drain valve.

Release the two tabs and remove the cover on the fill cup.

Use a soft-bristled brush (not wire brush) to remove any scale buildup inside the fill cup.

Install the cover on the fill cup.

Use a soft-bristled brush (not wire brush) to carefully remove any scale buildup inside the drain cup.

Refer to Figure 13 for visual guidance.

Fill hose disconnected from the drain valve

Electrical connectors and ground wire disconnected from the drain valve

Two screws securing the drain valve to the cabinet removed

O-ring in the drain valve removed and discarded

Valve disassembled by loosening the brass nut and removing the solenoid assembly from the valve body

Solenoid assembly disassembled and all components cleaned

Sign off on the drain valve removal
