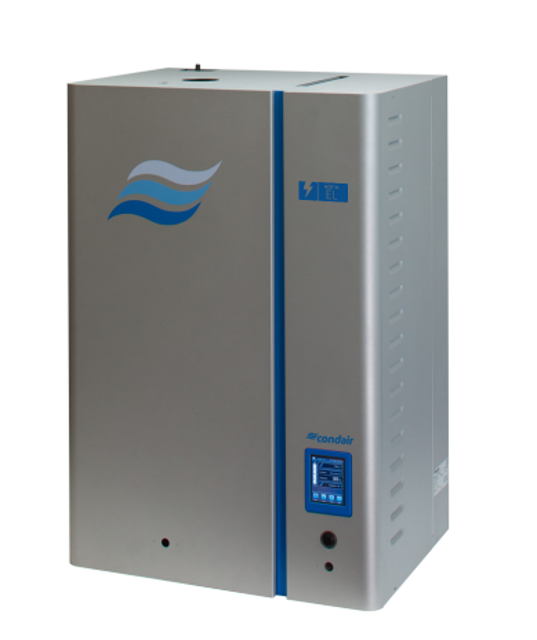

condair Electrode Steam Humidifier EL200

Refer to Figure 11 for visual guidance.

Turn the captive screw in each door panel counter-clockwise with a screwdriver.

Lift up the door panel slightly so that the tabs clear the notches in the cabinet.

Sign off on the door panel removal

Refer to Figure 13 for visual guidance.

Fill hose disconnected from the drain valve

Electrical connectors and ground wire disconnected from the drain valve

Two screws securing the drain valve to the cabinet removed

O-ring in the drain valve removed and discarded

Valve disassembled by loosening the brass nut and removing the solenoid assembly from the valve body

Solenoid assembly disassembled and all components cleaned

Sign off on the drain valve removal

Remove and clean the fill valve strainer

Inspect and clean, if necessary

Inspect the steam and condensate hoses in the humidifier for cracks, and check that they are fastened securely

Inspect the water hoses for cracks, and check that they are fastened securely

Clean the water filter in the supply line

Inspect all cables for damage and insulation breakdown

Water Hoses: Use a rubber mallet to knock out any scale buildup in the hoses. Rinse the hoses thoroughly with hot tap water.

Fill valve: Use a soft-bristled brush (not wire brush) to carefully remove any scale buildup inside the fill valve and in the strainer.

Drain Valve - Valve Body: Use a soft-bristled brush (not wire brush) to remove any scale buildup inside the valve body of the drain valve.

Release the two tabs and remove the cover on the fill cup.

Use a soft-bristled brush (not wire brush) to remove any scale buildup inside the fill cup.

Install the cover on the fill cup.

Use a soft-bristled brush (not wire brush) to carefully remove any scale buildup inside the drain cup.

Warning: This procedure requires trained personnel with PPE!

'Cylinder Spent' warning message appears on the Home screen?

If 'Cylinder Spent' warning message does not appear, do not proceed with the procedure.

Upload a photo of the old steam cylinder

Steam cylinder removed successfully?

Upload a photo of the new steam cylinder

Steam cylinder installed successfully?

Sign off on the steam cylinder replacement
