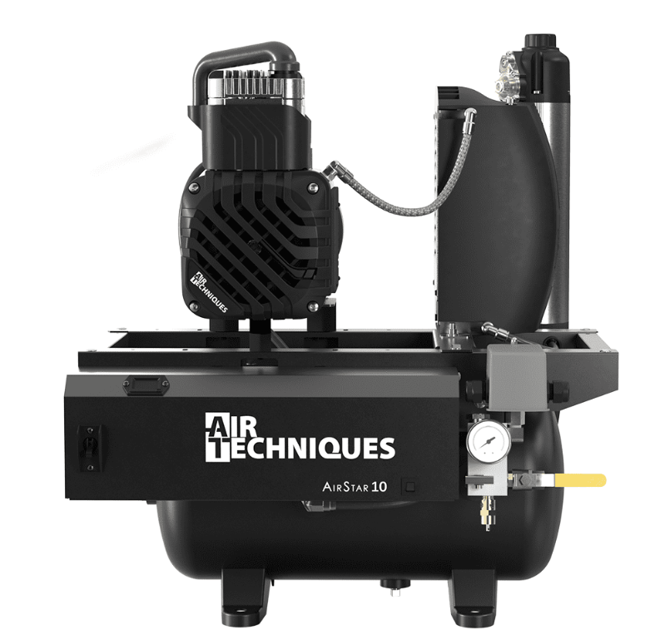

Air Techniques Air Compressor AS10

Intake Filter(s) are fully seated into the compressor head(s)

Check the incoming line voltage

If voltage is not at or above the required level, install the appropriate boost transformer and check that the correct main circuit breaker and wire size are being used.

Appropriate boost transformer installed and correct main circuit breaker and wire size are being used

Recovery time from 85 to 115 PSI

Sign off on the post installation check

Check for abnormal noises and air leaks

No flammable, corrosive, or combustible materials are stored in the equipment room (especially in the area around the equipment)

Operational range of pressure switch

Inspect the Moisture Monitor for a color change

Note: To comply with NFPA 99C, a 5-micron Filter is installed on the output of all AIRSTAR models.

Refer to Figure 4 and check the Service Indicator on the 5-micron Outlet Filter.

Red indicates that the filter must be replaced P/N 87168.

Green indicates No service is required.

Important: In dusty environments, the Intake Filter, PN 89938, may need to be changed more often than once a year.

Always dispose of the removed filter in accordance with local codes;

Sign off on the air compressor inspection
