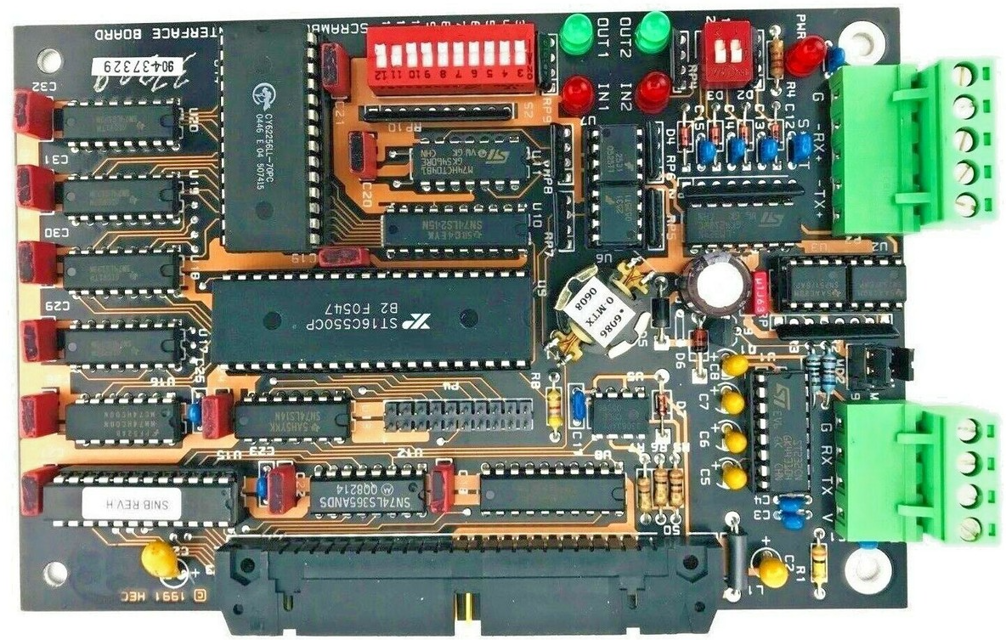

Identiv Sensor Interface Board SNIB3

Press START 10 * 1 * 100 * 65 #

Complete the testing by entering the test code from each permanently installed ScramblePad

Press START 99 # to quit programming mode upon completion of testing

Ensure connections are properly made

Did the system complete the self-test successfully?

Record the printed or displayed configuration information

Configuration and Options Check

Use Command 88*2 from the ScramblePad to request configurations and options information

Is the controller's CCM firmware version 7.5.37 or later?

Update the CCM firmware if necessary.

Disconnect the battery backup power from the controller.

Disconnect the AC power cables to the controller.

Disconnect the following cables and wires from the existing SNIB or SNIB2 board

Request status check from ScramblePad

Press START * # on the ScramblePad

Read the status of the relay and line module input from the ScramblePad LEDs

Request specific relay and line module input status

Press START * door relay/line module input (1 - 8) # on the ScramblePad

Example: To display the status of Relay 8 and Alarm 8, press START * 8 #

Read the status of the specified relay and line module input from the ScramblePad LEDs

Refer to troubleshooting guide if needed

Consult “Troubleshooting the Controller Using Status LEDs” on page 7-379 for more information

Ground yourself by touching the controller enclosure or power supply

Turn off all controller system power by removing connectors for both AC power and the standby battery

Disconnect the main power to the controller

Remove the AC fuse located on the power supply

Remove the screws anchoring the CCM circuit board
