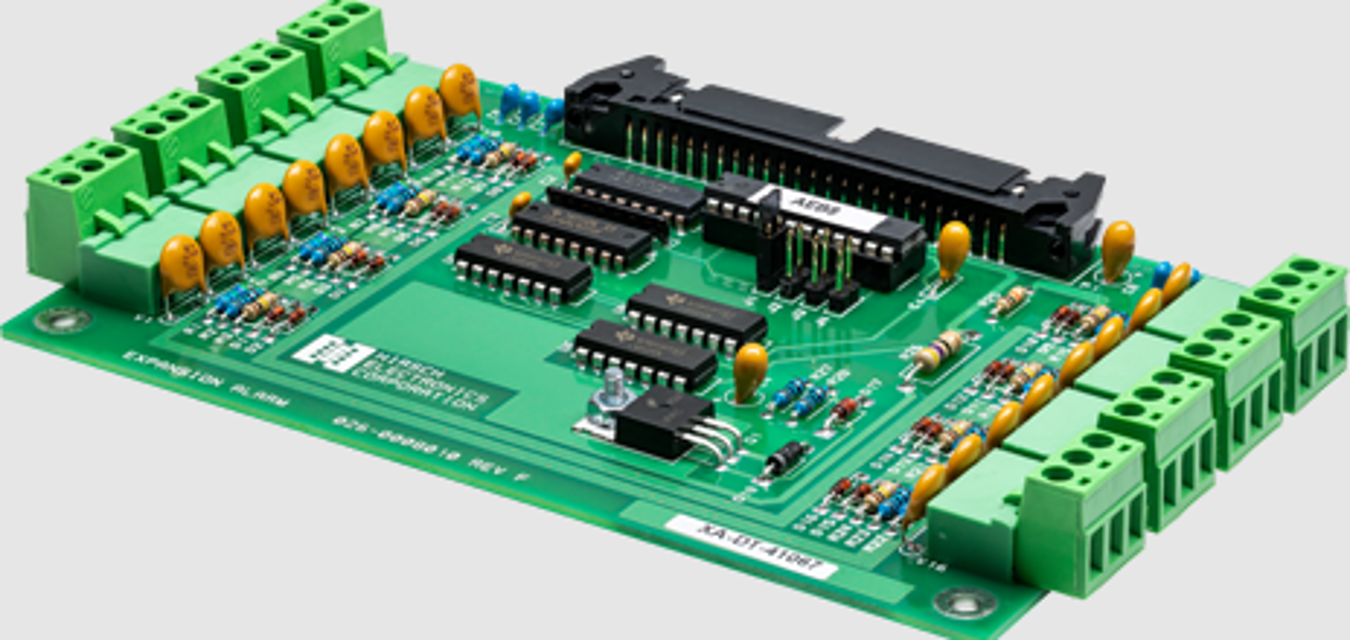

Identiv Alarm Expansion Board AEB

Is the controller's CCM firmware version 7.5.37 or later?

Update the CCM firmware if necessary.

Disconnect the battery backup power from the controller.

Disconnect the AC power cables to the controller.

Disconnect Existing SNIB or SNIB2

Disconnect the cables and wires attached to the existing SNIB or SNIB2 board, including:

Attach a printer to the Controller or ensure the Controller is attached to a Host PC

Power the system up by connecting the AC power and then the standby battery

Verify the system goes through its self-test and prints the Configuration section

Check Expansion Inputs printed on the local printer

Verify the controller version and recognized expansion inputs

Check the Options section for the line AEB8-N

Use Command 88*2 from the ScramblePad or Host PC software to request Max Users and Options information

If the correct information doesn’t appear on the printouts, power down the Controller and recheck the EBIC connections, then retry the test procedure

Order replacement memory battery

Unplug memory battery connector

Cut and remove existing cable tie

Replace and connect new memory battery

Secure new memory battery with cable tie

Close Mx controller’s enclosure

Verify alarm and event notifications

Press START * # to request a status check from the ScramblePad.

Request Specific Relay and Line Module Input Status

Enter the door relay/line module input number (1 - 8) to request specific status.

Press START * [door relay/line module input] # to request the status of the specific relay and line module input.

Read Status from ScramblePad LEDs

Read the status report from the ScramblePad LEDs as per Table 7-13.

Refer to “Troubleshooting the Controller Using Status LEDs” on page 7-379 if needed.

Ensure the Mx-1 controller's power remains on during the battery replacement.

Measure the voltage of the current memory battery.

Replace the memory battery with a new one of equivalent specifications.

Was the data lost during the battery replacement?

If data was lost, download the following using Velocity:
