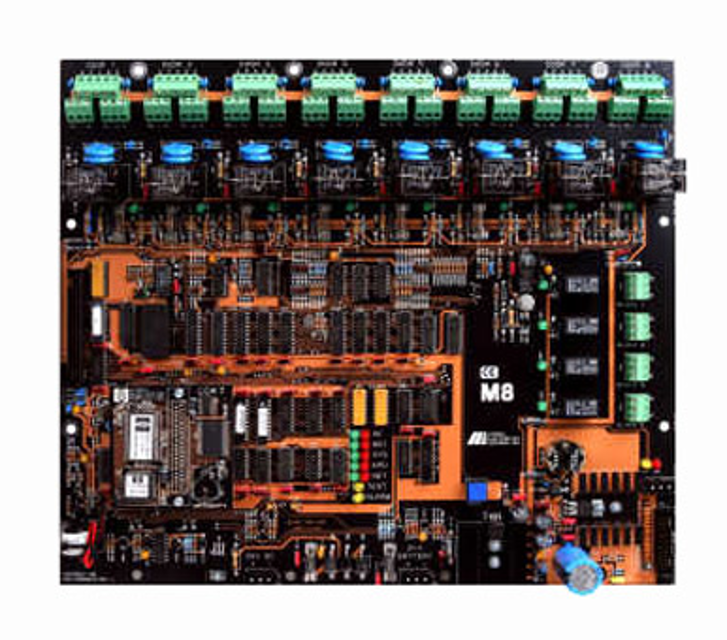

Identiv RFID Reader Module M8

Ensure connections are properly made

Did the system print or display the self-test information?

Configuration and Options Verification

Ensure the Mx-1 controller's power remains on during the battery replacement.

Measure the voltage of the current memory battery.

Is the battery voltage below 3.00 VDC?

Replace the memory battery with a model PD3048 or equivalent.

Did the Mx-1 controller lose data during the battery replacement?

If data was lost, download the following using Velocity

Ensure connections are properly made

Did the system go through its self-test?

Verify printed information under Configurations section

Verify printed information under Options section

Is the controller's CCM firmware version 7.5.37 or later?

Update the CCM firmware if necessary.

Disconnect the battery backup power from the controller.

Disconnect the AC power cables to the controller.

Disconnect the following cables and wires from the existing SNIB or SNIB2 board

Order replacement memory battery

Receive new memory battery and gather tools

Open Mx controller’s enclosure and locate existing memory battery

Unplug memory battery connector from BAT1

Cut and remove existing cable tie

Replace old memory battery and plug in new one at BAT1

Secure new memory battery with a cable tie

Close the Mx controller’s enclosure

Check for 'Memory Battery Failure' and 'Memory Battery Restored' events in Alarm Viewer
