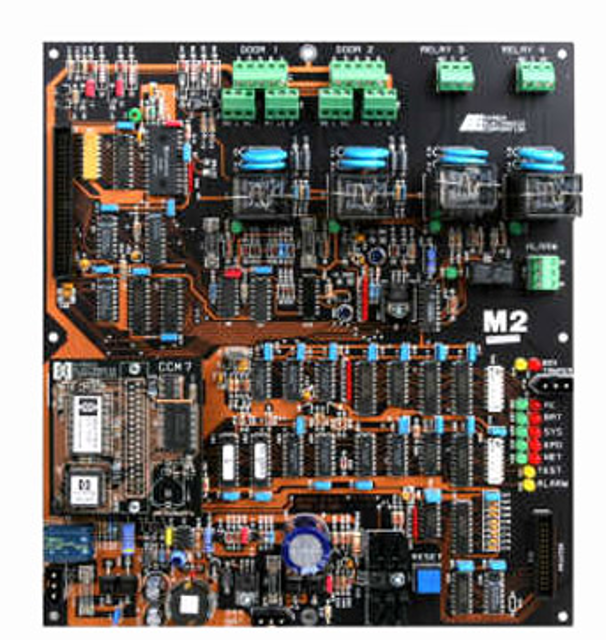

Identiv RFID Reader Module M2

Ground yourself by touching the controller enclosure or power supply

Turn off all controller system power by removing connectors for both AC power and the standby battery

Disconnect the main power to the controller

Remove the AC fuse located on the power supply

Remove the screws anchoring the CCM circuit board

Connect a printer to the controller

Temporarily connect a ScramblePad at the Controller

Press START 10 * 1 * 100 * 65 #

Enter the test code from each permanently installed ScramblePad

Attach a printer to the Controller or ensure the Controller is attached to a Host PC

Power the system up by connecting the AC power and then the standby battery

Verify the system goes through its self-test and prints the configuration information

Check the printed Expansion Inputs

Verify the controller version compatibility

Check the Options section for the line: AEB8-N where N is the number of AEB8s installed

Use Command 88*2 from the ScramblePad or Host PC software to request Max Users and Options information

If the correct information doesn’t appear on the printouts, power down the Controller and recheck the EBIC connections, then retry the test procedure

Ensure the controller's CCM firmware version is 7.5.37 or later.

Update the CCM firmware if necessary.

Disconnect the battery backup power from the controller.

Disconnect the AC power cables to the controller.

Disconnect the following cables and wires from the existing SNIB or SNIB2 board

Ensure connections are properly made

Did the system complete the self-test successfully?

Record the printed or displayed information from the self-test

Configuration and Options Check

Is the Expansion Relays count correct based on the number of REB8s installed?
