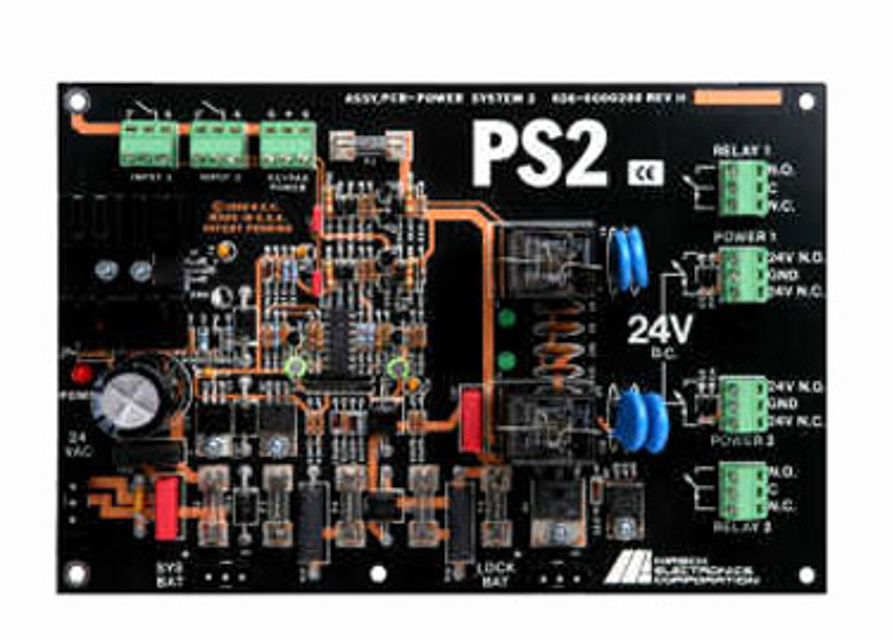

Identiv Power Supply Unit PS2

Ground yourself by touching the controller enclosure or power supply

Turn off all controller system power by removing connectors for both AC power and the standby battery

Remove the screws anchoring the CCM circuit board

Remove the old CCM by grabbing the circuit board by the edges and pulling it up and away from the controller board

Press START * # to request status check

Request Specific Relay and Line Module Status

Enter the relay/line module input number (1 - 8)

Press START * [input number] # to request specific status

Read Status from ScramblePad LEDs

Read the status from the ScramblePad LEDs

Refer to 'Troubleshooting the Controller Using Status LEDs' on page 7-379 for more information

Ensure connections are properly made

Power up the controller by connecting AC then standby battery

Verify self-test information printed out at a local printer

Select the type of MEB and verify the information

View maximum user information using the Host PC software

Connect a printer to the controller

Temporarily connect a ScramblePad at the Controller if not already installed

Press START 10 * 1 * 100 * 65 #

Enter the test code from each permanently installed ScramblePad

Ensure connections are properly made

Did the system complete the self-test successfully?

Record the printed or displayed configuration information

Record the printed or displayed options information

Configuration and Options Check
