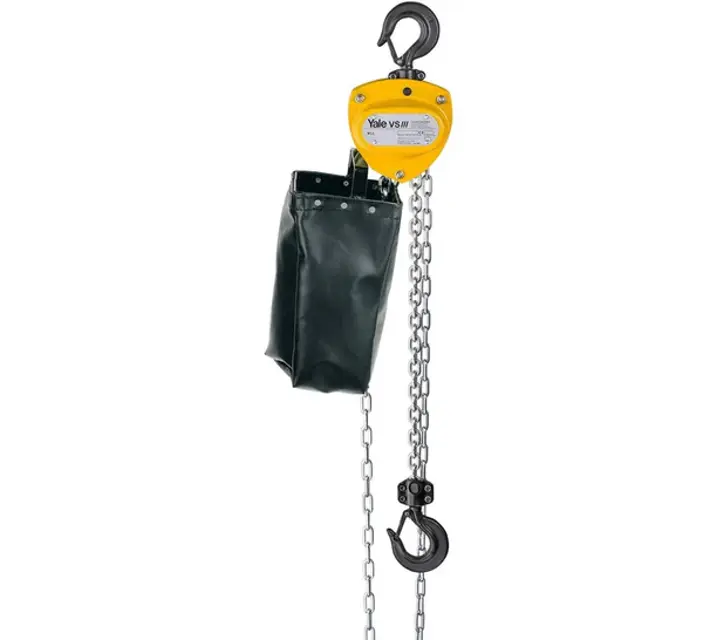

Hyster-Yale Chain Hoist 0,25t/1

Warning: This inspection requires trained personnel with PPE!

Supporting structure has sufficient stability

Expected forces can be safely absorbed

Issues found during the inspection

Sign off on the attachment point inspection

Warning: For safety reasons, hand chain links may only be used once.

Identified the non-welded link of the hand chain?

Enter the new length of the hand chain in mm

Did you remove or add an even number of chain links?

Used a new link to close the loose chain ends?

Hand chains are not twisted while they are fitted?

Sign off on the hand chain adjustment

Warning: This inspection requires trained personnel with PPE!

Top hook free of cracks, deformations, damage, wear and corrosion marks

Load hook free of cracks, deformations, damage, wear and corrosion marks

Safety latch moves freely and is fully functioning

Hook free of deformation, damage, surface cracks, wear and signs of corrosion

Does the mouth of the hook opened more than 10%?

Have the nominal dimensions reduced by 5% as a result of wear?

If any of the above checks fail, replace the hook immediately. Welding on hooks is not permissible.

Sign off on the hook inspection

Warning: Only authorized personnel should perform this procedure

Visible damage or deformations on the load chain?

If damage or deformations are visible, proceed with the replacement. Otherwise, stop the procedure

Is the replacement chain of the same dimensions and quality?

Is the replacement chain approved by the manufacturer?

Non-compliance with the specifications will render the legal warranty or guarantee void with immediate effect

Upload a photo of the new chain

Sign off on the load chain replacement

Document the replacement of the load chain

Warning: This procedure requires trained personnel with PPE!

Upload a photo of the open load chain link

Is the length of the cut section at least equal to the thickness of the link?

Is the old hand chain opened on the connection link?

Is the open link suspended into the loose end of the hand chain?

Is the new hand chain also suspended in the open link?

Is the new hand chain pulled through the chain guides and over the hand chain wheel?

Is the chain fitted without any twists?
