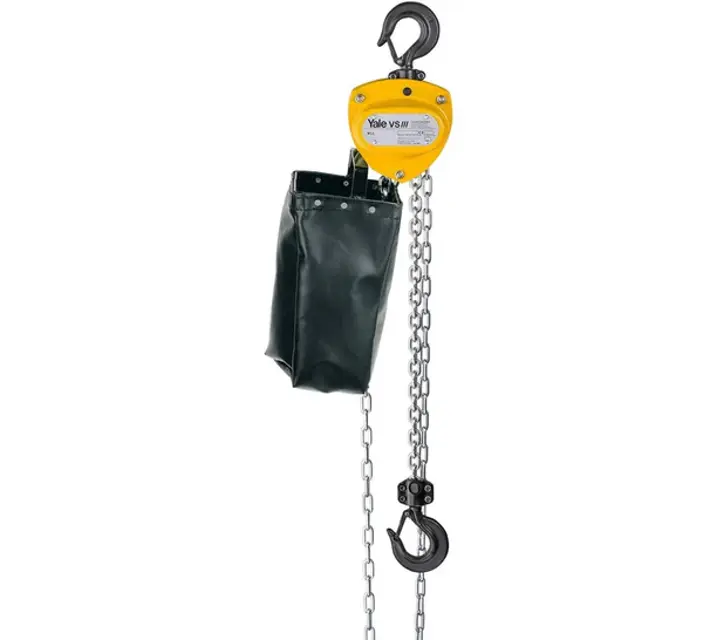

Hyster-Yale Chain Hoist 2,0t/1

Warning: For safety reasons, hand chain links may only be used once.

Is the distance of the lower end to the floor between 500 – 1000 mm?

Look for the non-welded link of the hand chain, bend to open and discard it.

Did you shorten or extend the chain to the required length?

ATTENTION: Always remove or add an even number of chain links.

Did you use a new link to close the loose chain ends by bending it?

For extending the hand chain, two new chain links are required.

Did you make sure that hand chains are not twisted while they are fitted?

Sign off on the hand chain adjustment

Warning: Ensure the chain is in no-load condition before lubrication.

Is the chain properly lubricated at the link contact points?

Is the chain lubricated over its entire length, including the part in the hoist housing?

Is the chain clean and free of dirt?

Is the change-over area from lifting to lowering movement checked?

Is there any wear on the chain?

ATTENTION: Ensure no lubricant penetrates into the brake enclosure.

Sign off on the load chain maintenance

Warning: This inspection requires trained personnel with PPE!

Top hook free of cracks, deformations, damage, wear and corrosion marks

Load hook free of cracks, deformations, damage, wear and corrosion marks

Safety latch moves freely and is fully functioning

Measure the nominal dimensions of the hook

Check if the hook needs to be replaced

Sign off on the hook inspection

Warning: This inspection requires trained personnel with PPE!

Load chain is not twisted or kinked

If the chain is twisted or kinked, report the issue to the maintenance team and stop the procedure

Did the bottom block roll over?

Chain is reeved correctly with the chain weld facing outwards

Select the type of load chain used

Non-compliance with the specification will render the legal warranty or guarantee void with immediate effect

Sign off on the chain reeving inspection

Warning: This procedure requires trained personnel with PPE!

Upload a photo of the open load chain link

Is the length of the cut section at least equal to the thickness of the link?

Is the old hand chain opened on the connection link?

Is the open link suspended into the loose end of the hand chain?

Is the new hand chain also suspended in the open link?

Is the new hand chain pulled through the chain guides and over the hand chain wheel?
