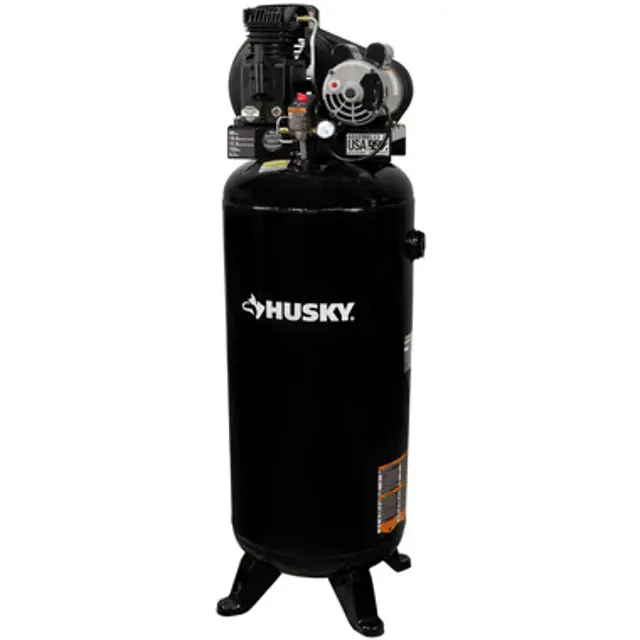

Husky Husky 60-Gallon Stationary Air Compressor C602H C602H

WARNING: When servicing, use only identical Husky replacement parts. Use of any other parts may create a hazard or cause product damage.

WARNING: Always release all pressure, disconnect from power supply, and allow unit to cool to the touch before cleaning or making repairs on the air compressor.

WARNING: Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

Electric tools used on fiberglass material, wallboard, spackling compounds, or plaster are subject to accelerated wear and possible premature failure because the fiberglass chips and grindings are highly abrasive to bearings, brushes, commutators, etc.

Condensate forms in the tank when there is humidity in the air. Depending on the environmental conditions, drain the condensate daily and/or every hour.

The safety valve automatically releases air when the receiver pressure exceeds the preset maximum.

Inspect the tank annually for rust, pin holes, or other imperfections that could cause it to become unsafe.

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.

Use clean cloths to remove dirt, dust, oil, grease, etc.

Drain the air tank of moisture after operation

Store the compressor in a cool, dry place when not in use

Disconnect the air hose and hang open ends down to allow any moisture to drain

Protect the electrical cord and air hose from damage (such as being stepped on or run over)

Sign off on the air compressor care and cleaning

WARNING: Drain the tank to release the air pressure before removing the oil fill cap or oil drain plug.

CAUTION: Overfilling with oil will cause premature air compressor failure. Do not overfill.

NOTICE: Risk of property damage. Use air compressor oil only. Multi-weight automotive engine oils like 10W30 should not be use in the air compressors. They leave carbon deposits on critical components, thus reducing performance and compressor life.

The oil level is to the middle of the sight glass.

If needed, remove the oil fill plug and slowly add the oil until it reaches the middle of the sight glass.

NOTE: Do not use multi-weight automotive engine oils, as they will reduce compressor life. Under extreme winter condition use SAE-10 weight oil.

Turn the air compressor OFF ( O )

Unsnap the air filter cover to remove

Remove the air filter from the air filter housing

Blow compressed air through the air filter for 10-15 seconds

Sign off on the air filter cleaning

Warning: Ensure the grooves of the flywheel and pulley are aligned to within 1/16 in. (1.6 mm) to prevent excessive belt wear.

Motor aligned with the mark made earlier on the saddle?

Enter the deflection of the belt in inches

Enter the weight applied at the midway point in pounds

Enter the torque applied to the motor mounting screws in ft-lbs

Sign off on the belt tension adjustment
