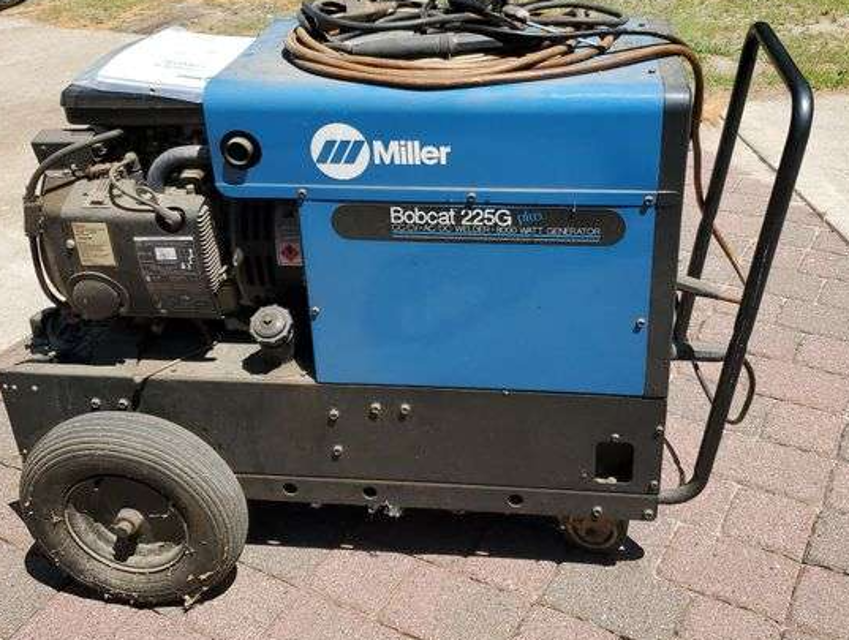

Miller Welding Generator Bobcat 225G +

Start engine and run until warm.

Turn Fine Adjust control to 10.

Stop engine. Disconnect negative (–) battery cable.

F1 protects the exciter excitation winding from overload. If F1 opens, there is no/low weld and auxiliary power output.

F6 protects the engine wiring system from overload. If F6 opens, engine will not crank. If F6 opens while engine is running, weld and auxiliary power output stops.

Replace any open fuses. Reinstall cover before operating.

Sign off on the overload protection check

Caution: Stop engine before maintaining.

Repair Or Replace Cracked Cables.

During Heavy Service, Clean Monthly. (Every 1000 h);

Sign off on the generator maintenance

Caution: Stop engine before maintaining.

Change Oil. See Section 6-4 And Maintenance Label.

Change engine oil and filter according to engine owner’s manual.

Clean And Tighten Battery Connections.

Change Oil Filter. See Section 6-4 And Maintenance Label.

Caution: Stop engine before maintaining.

Replace Fuel Filter. See Section 6-4.

Close valve and valve cap before adding oil and running engine.

Fill crankcase with new oil to full mark on dipstick (see Section 6-2).

Replace line if cracked or worn.

Install new filter. Wipe up any spilled fuel.
