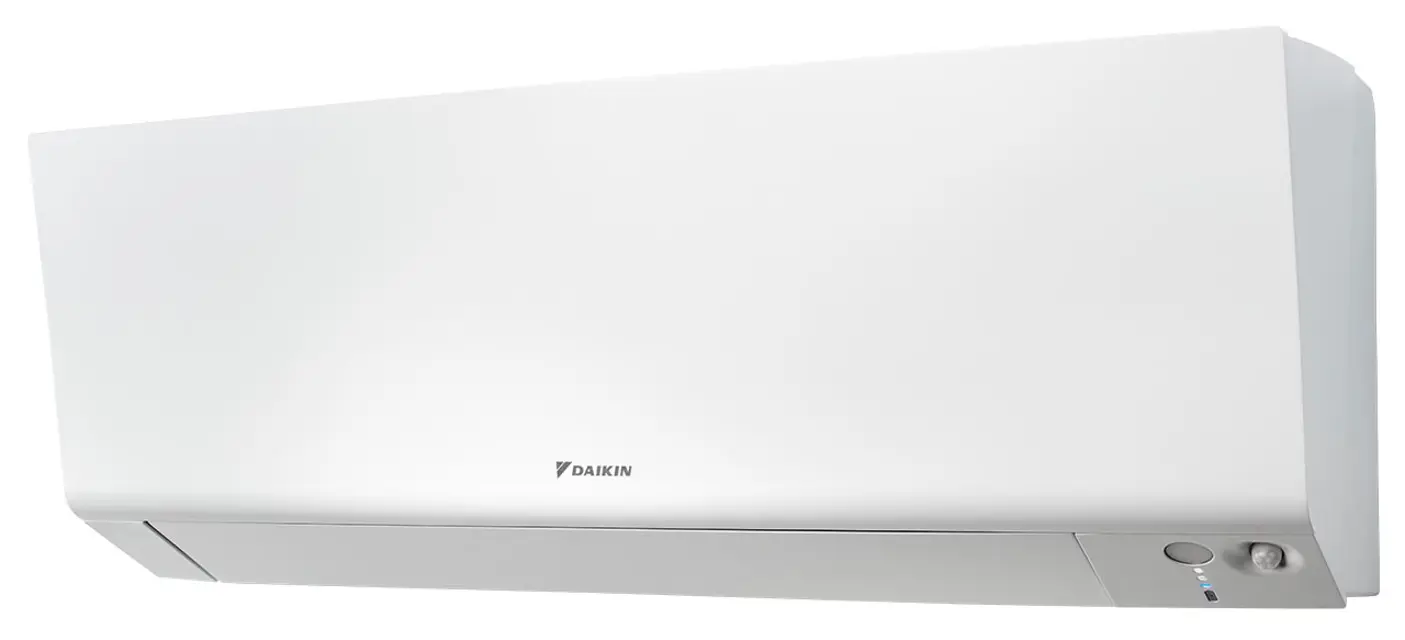

Daikin Air Conditioner RXM35R5V1B9; FTXM35R2V1B

Warning: Always replace both batteries at once

Both batteries inserted at once

Sign off on the battery replacement

Warning: Ensure to wear safety gloves and goggles before starting the procedure

Remove the filter from the tabs (class 15~42) or frame (class 50~71)

Replace the filter with a new one

INFORMATION: Do NOT throw away the filter frame, but use it again. Dispose of the old filter as non-flammable waste

Attach the front panel. Align the shafts with the slots and push them all the way in

Close the front panel slowly; press at both sides and at the centre

Sign off on the filter replacement

Warning: This procedure requires trained personnel with PPE!

Filter removed from the tabs/claws?

Dust removed from the filter with a vacuum cleaner?

Filter soaked for 10 to 15 minutes in warm water?

Note: (class 50~71) Do NOT remove the filter from the frame

Do NOT wring out the filter when removing water

Sign off on the filter cleaning

Warning: Ensure the air filters are turned off and unplugged before cleaning

Push the tab at the centre of each air filter, then pull it down

Note: (class 50~71) The titanium apatite deodorising filter and the silver allergen removal air purifying filter MUST be removed before cleaning the air filter

Remove the titanium apatite deodorising filter and the silver allergen removal air purifying filter from all 4 claws

Wash the air filters with water or clean them with a vacuum cleaner

Soak in lukewarm water for about 10 to 15 minutes

INFORMATION: If the dust does NOT come off easily, wash them with a neutral detergent diluted in lukewarm water. Dry the air filters in the shade

It is recommended to clean the air filters every 2 weeks

WARNING: Improper detergents or cleaning procedure may cause damage on plastic components or water leakage. Splashed detergent on electric components, such as motors, may cause failure, smoke or ignition.

NOTICE: Do NOT use gasoline, benzene, thinner, polishing powder or liquid insecticide. Possible consequence: Discoloration and deformation. Do NOT use water or air of 40°C or higher. Possible consequence: Discoloration and deformation. Do NOT use polishing compounds. Do NOT use a scrubbing brush. Possible consequence: The surface finishing peels off.

As an end user, you may NEVER clean inside parts of the unit by yourself; this work must be performed by a qualified service person. Contact your dealer.

DANGER: RISK OF ELECTROCUTION: Before cleaning, be sure to stop the operation, turn the breaker off or pull out the supply cord. Otherwise, an electric shock and injury may result.

Cleaned the indoor unit and user interface with a soft cloth?

Used water or a neutral detergent for difficult stains?

Cleaned the front panel with a soft cloth?

Used water or a neutral detergent for difficult stains on the front panel?

Removed the front panel by holding the panel tabs on both sides and opening it?
