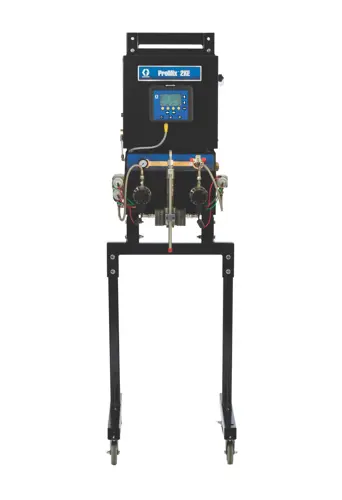

Graco Meter System 24F082
Need answers fast?
Explore the manual using AI.
The Graco Meter System 24F082 is a high-performance industrial asset designed for precise fluid measurement and control. Known for its reliability and efficiency, this meter system is essential for optimizing operations in various manufacturing processes. Ensure optimal performance with regular maintenance and quality spare parts.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Graco Meter System 24F082
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more

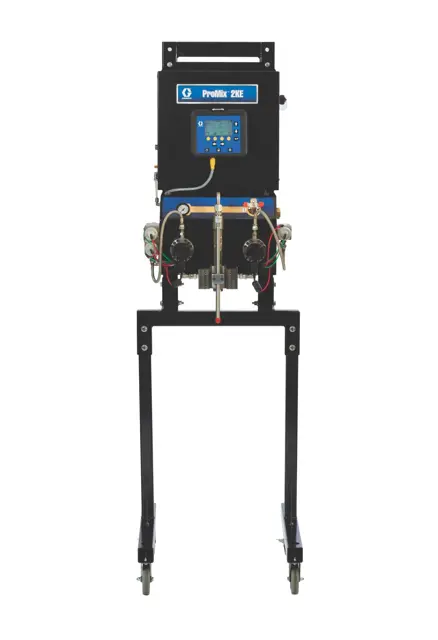

Graco Meter System 24F082
Create an account to install this asset package.
Maintenance Plans for Graco Meter System Model 24F082
Integrate maintenance plans directly into your work orders in MaintainX.
Advanced Fluid Control Module (AFCM) Replacement
Follow Before Servicing, page 13. Disconnect main power.
Control Box opened
All cables from AFCM (302) removed and cable locations noted
Ground wire disconnected from ground screw (GS)
Four mounting screws (303) loosened
AFCM slid up and out of keyhole slots
Follow steps in reverse order to install a new AFCM. See electrical schematic for cable connection information.
Follow instructions in Manual 3A1244 to update the software on the new AFCM.
Control Box closed and power restored
Alarm Replacement
Follow Before Servicing, page 13. Disconnect main power.
Control Box opened
Alarm wires disconnected from alarm (311)
Alarm jam/mounting nut unscrewed and alarm removed
New alarm assembled and alarm wires reconnected
Control Box closed and power restored
Flow Meters Maintennace
Coriolis Meter
Upload the manual 313599 for servicing the Coriolis meter
G3000 Meter Removal
Cable harness (118) and fluid lines removed
Two screws (110) and washers (109) holding the meter (103) and the spacer (104) to the fluid plate (101) removed
Upload the meter manual 308778 for servicing the meter
G3000 Meter Installation
Meter (103) and spacer (104) secured to the fluid plate (101) with screws (110) and washers (109)
Cable harness (118) and fluid line connected
Solenoid Replacement
The system has a minimum of 4 solenoids. If you have a 3-color system or a gun flush box, you have additional (optional) solenoids for each.
⚠️⚡️
To replace a single solenoid:
1. Follow Before Servicing, page 13. Disconnect main power.
2. Open Control Box.
3. Disconnect 2 solenoid wires (N) from harness (320). See FIG. 3.
4. Unscrew 2 screws (P) and remove solenoid (306).
5. Install new solenoid (306).
6. Connect 2 wires (N) to harness (320). Solenoid wires are polarized (red+, black-). Refer to System Electrical Schematics, pages 54–57.
Fluid Controls Maintenance
Before Servicing
Meter-based systems: Remove Air/Fluid Panel
Pump-based systems: Remove fluid inlet hose, fluid outlet pressure sensor, fluid fitting, fluid outlet lines, solvent supply hose
Meter-based systems: Disconnect fluid inlet lines from valve stacks
Remove four bolts and washers from inside the panel to remove each valve stack
3-Color System: Remove four bolts from top of valve stack. Separate the two manifolds
Replace Seat(s): Remove dosing valve from manifold, then remove and replace seat and o-rings
Service Dosing Valve: Follow all instructions and warnings in manual 312782 to rebuild the dosing valve
Valve Manifold Rebuild: For full service of your valve stack, follow directions in Dosing Valve Manifold Rebuild
