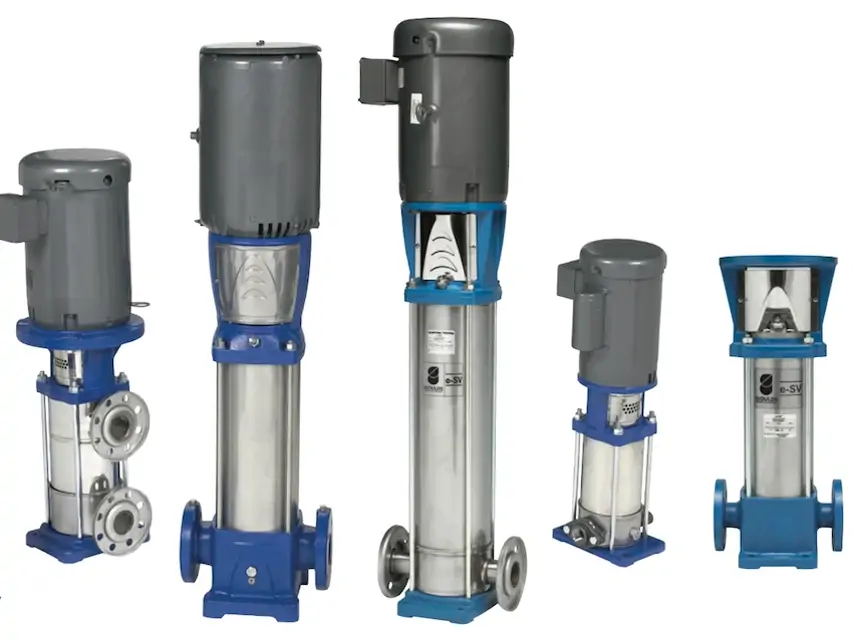

Goulds Pumps Vertical Multistage Pump 3SV7FH40A

Remove the motor following steps 1 through 4 in the 'MECHANICAL SEAL REPLACEMENT' section

For motor frames 213TC and larger, remove the 4 motor hex cap screws and the motor adapter

Install the motor adapter flange onto the new motor

Torque the 4 hex cap screws to the values provided in the 'ENGINEERING DATA' section

Complete the reassembly following steps 17 through 22 in the 'MECHANICAL SEAL REPLACEMENT' section

Disconnect and lockout electrical power before attempting any maintenance.

Close all necessary suction and discharge valves to isolate the pump from the system.

Drain the liquid from the pump by removing the drain plug and opening the needle valve on the vent plug.

Remove the coupling guards, the 4 coupling hex cap screws, the coupling and coupling drive pin.

Remove the 4 motor hex cap screws (inner screws) on the seal housing.

Remove the seal housing plate on 33-125SV models using the two tapped holes provided.

Disconnect and lockout electrical power before attempting any maintenance

Verify electrical power is disconnected and locked out

Motor Bearing Lubrication Intervals

Select the service environment interval

Are lubricants operated at elevated temperatures?

Is there a need to increase lubrication frequency due to elevated temperatures?

Is the grease base being changed?
