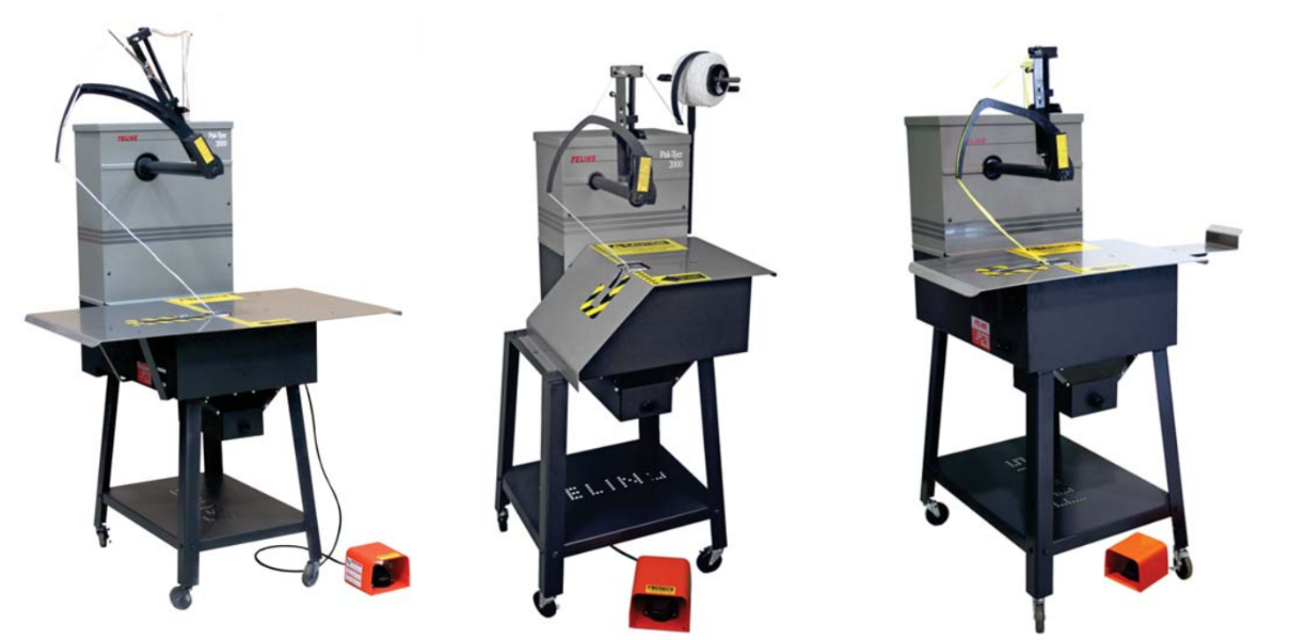

Felins Coil Tyer Tying Machine 2000-8 Coil Tyer

WARNING: Do not perform maintenance on machinery unless electrical power and air are disconnected, or cannot be turned on by any person other than the individual performing the maintenance.

Power to the machine turned off

Screws securing the table to the machine removed

CAUTION: Before cycling the machine, know which parts of the machine move.

It is the operator's responsibility to fully read and understand this manual before attempting to operate or service the machine. If something is still unclear, please re-read the manual or contact your local Felins Distributor or the Felins Service Department for additional information.

Machine cycled and stop switch cam verified

NOTE: The stop switch cam assembly consists of the roll pin (Figure 69, Item 4) and the locking collar (Figure 69, Item 2).

Refer to the lubrication photos for lubrication points for oil and grease. Most, but not all, of the lubrication points are highlighted on the machine with white paint. Lubricate the machine as presented in the Lubrication Schedule.

The following locations are lubricated with 2 - 3 drops of Felins lubricating oil (Part No. 300A03024):

• Oil hole for main shaft at base of column - Figure 23

• Oil hole for main shaft in shaft support - Figure 24

• Oil hole for stripper pivot - Figure 25

• Oil hole for tucker pivot - Figure 25

• Oil hole in cam follower roller - Figure 26

• Base of knotter at top of main frame - Figure 27

WARNING: Do not perform maintenance on machinery unless electrical power and air are disconnected, locked out or cannot be turned on by any person other than the individual performing the maintenance.

Power disconnected and locked out?

Fuse holder removed from control module?

Fuse replaced with same size and rating?

Inspect for loose fasteners, drive collars, and clamps. (See Adjustments/Repairs section)

Inspect for loose electrical connections.(See Adjustments/Repairs section)

Inspect for electrical connections in close proximity to moving parts. (See Adjustments/Repairs section)

Inspect for metal filings at or near wear points. (See Adjustments/Repairs section)

Inspect knotter and knotter jaw for excessive wear. (See Adjustments/Repairs section)

Inspect the delivery arm break-away mechanism to ensure it will break away properly. (See Adjustments/Repairs section);

Warning: Wear safety glasses while performing this procedure.

Is the motor manufactured by Bodine?

If not, stop the procedure and report to the maintenance team.

Brush caps removed from each side of the motor?

Springs removed from the brushes?

Brushes removed for inspection?

Measure the length of the brush from the point where the wire merges with the brush to the end of the brush that contacts the commutator inside the motor.

Is the total length of the brush less than 0.375 inch (9.5 mm)?

If new brushes are required, record the motor type and serial number from the motor nameplate. Contact your Felins Distributor or the Felins Technical Service department for assistance.
