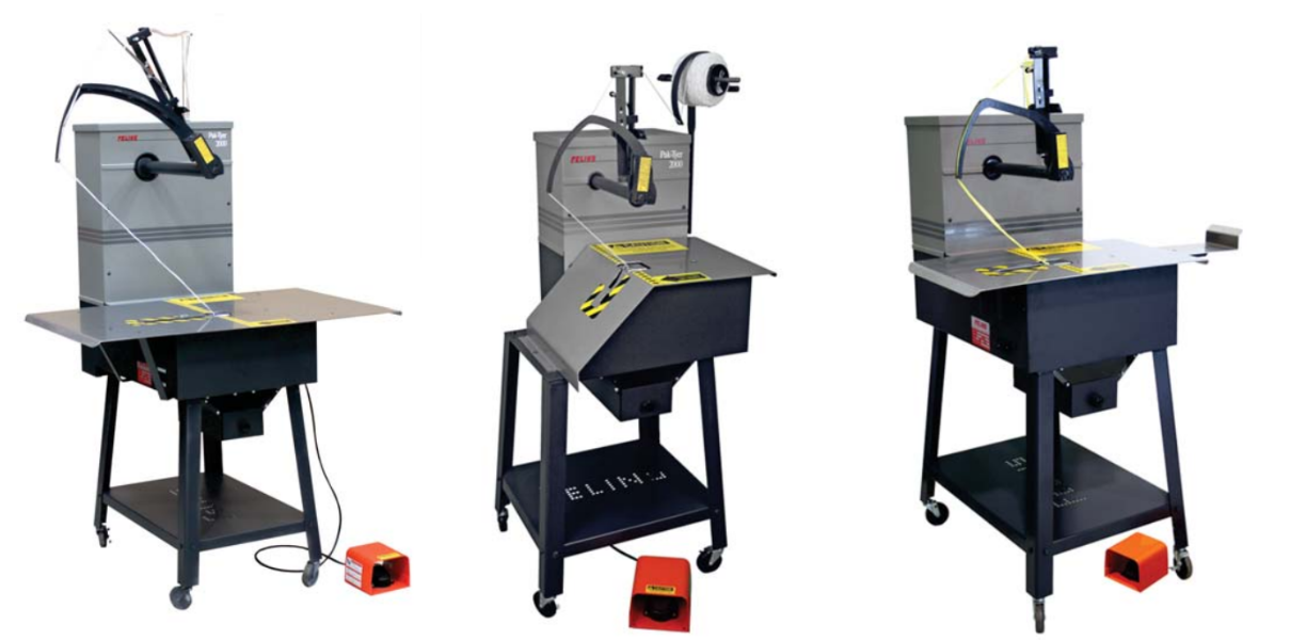

Felins Tying Machine 2000-8

WARNING: Do not perform maintenance on machinery unless electrical power and air are disconnected, locked out or cannot be turned on by any person other than the individual performing the maintenance.

Disconnect the power at the power switch and remove the power cord.

Remove the screws that secure the table to the machine and remove the table.

Loosen the nylon lock nut to allow the brass nut to be adjusted.

CAUTION: When operating the machine, the operator should wear appropriate personal protective equipment including, but not limited to safety glasses. The operator should keep hands, any loose clothing or jewelry, and long hair clear of openings and moving parts at all times.

Turn the power back on and test the machine.

NOTE: If further adjustments are needed, make sure to shut off the electrical power and remove the power cord from the machine before continuing with the adjustment process.

Repeat the adjustment procedures as needed.

Refer to the lubrication photos for lubrication points for oil and grease. Most, but not all, of the lubrication points are highlighted on the machine with white paint. Lubricate the machine as presented in the Lubrication Schedule.

The following locations are lubricated with 2 - 3 drops of Felins lubricating oil (Part No. 300A03024):

• Oil hole for main shaft at base of column - Figure 23

• Oil hole for main shaft in shaft support - Figure 24

• Oil hole for stripper pivot - Figure 25

• Oil hole for tucker pivot - Figure 25

• Oil hole in cam follower roller - Figure 26

• Base of knotter at top of main frame - Figure 27

Power shut off at the power switch and power cord removed from the input module

Fuse holder removed with a small flat head screwdriver

Fuse replaced with the same size and rating of the fuse removed and fuse holder inserted back into the input module

Note: The fuse holder has a spare fuse as it ships from the factory

Electrical power cord reconnected and power restored to the machine

Sign off on the fuse replacement

Inspect for loose fasteners, drive collars, and clamps. (See Adjustments/Repairs section)

Inspect for loose electrical connections.(See Adjustments/Repairs section)

Inspect for electrical connections in close proximity to moving parts. (See Adjustments/Repairs section)

Inspect for metal filings at or near wear points. (See Adjustments/Repairs section)

Inspect knotter and knotter jaw for excessive wear. (See Adjustments/Repairs section)

Inspect the delivery arm break-away mechanism to ensure it will break away properly. (See Adjustments/Repairs section);

Warning: This procedure requires trained personnel with PPE!

Upload a photo of the string holder plates (Figure 61, Items 3, 4)

Are the notches on the top end (Figure 61, Item 5) in line with each other on opposite sides of the tucker?

Are the plates rubbing the sides of the tucker with light pressure?

Select the type of tying material used

NOTE: Notches will be larger for heavier tying material.

Sign off on the string holder tension adjustment
