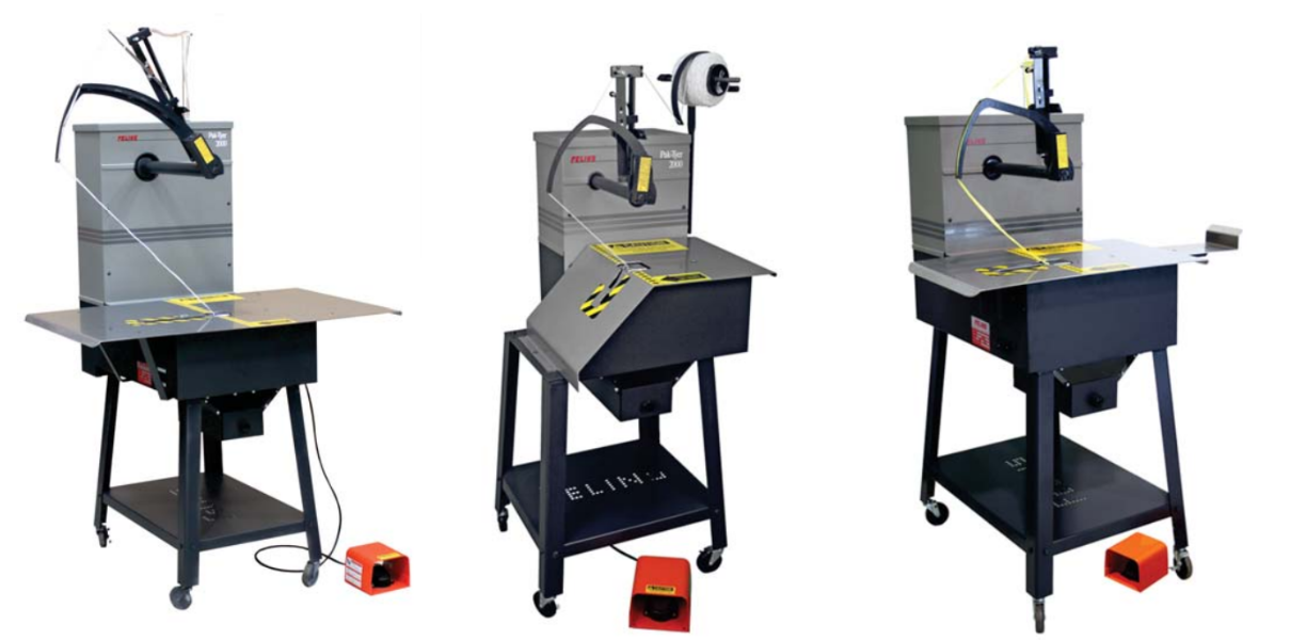

Felins Tying Machine 2000-12
Create an account to install this asset package.
Integrate maintenance plans directly into your work orders in MaintainX.
String Holder Tension Adjustment
Warning: Ensure the machine is turned off before starting the procedure
Upload a photo of the string holder plates (Figure 61, Items 3, 4)
Are the notches on the top end (Figure 61, Item 5) in line with each other on opposite sides of the tucker?
Are the notches of equal size?
Are the plates rubbing the sides of the tucker with light pressure?
Select the type of tying material used
NOTE: Notches will be larger for heavier tying material.
Sign off on the string holder tension adjustment
4 Weekly Moderate Duty Lubrication
Refer to the lubrication photos for lubrication points for oil and grease. Most, but not all, of the lubrication points are highlighted on the machine with white paint. Lubricate the machine as presented in the Lubrication Schedule.
Oil Lubrication Points
The following locations are lubricated with 2 - 3 drops of Felins lubricating oil (Part No. 300A03024):
• Oil hole for main shaft at base of column - Figure 23
• Oil hole for main shaft in shaft support - Figure 24
• Oil hole for stripper pivot - Figure 25
• Oil hole for tucker pivot - Figure 25
• Oil hole in cam follower roller - Figure 26
• Base of knotter at top of main frame - Figure 27
Knotter Jaw Replacement
WARNING: Do not perform maintenance on machinery unless electrical power and air are disconnected, locked out or cannot be turned on by any person other than the individual performing the maintenance.
Disconnect the power at the power switch and remove the power cord.
Remove the screws that secure the table to the machine and remove the table.
CAUTION: Located beneath the stripper plate is a knife. Before working with the stripper plate take time to locate the knife and use caution to avoid cutting hands or fingers.
Rotate the stripper plate by hand to expose the knotter and prop the stripper plate in a position that provides access to the knotter jaw screw.
Relieve the pressure on the knotter jaw by pushing the knotter plate away from the jaw and remove the screw and washer.
Push the knotter plate away from the knotter jaw roller and remove the knotter jaw from the knotter.
Apply a light coating of oil to both sides of the new jaw assembly before installation.
Install the new jaw assembly and secure with the screw and washer while relieving pressure from the knotter plate.
1 Weekly Heavy Duty Usage Maintenance
Inspect for loose fasteners, drive collars, and clamps. (See Adjustments/Repairs section)
Inspect for loose electrical connections.(See Adjustments/Repairs section)
Inspect for electrical connections in close proximity to moving parts. (See Adjustments/Repairs section)
Inspect for metal filings at or near wear points. (See Adjustments/Repairs section)
Inspect knotter and knotter jaw for excessive wear. (See Adjustments/Repairs section)
Inspect the delivery arm break-away mechanism to ensure it will break away properly. (See Adjustments/Repairs section);
Delivery Arm Break-Away Spring Tension Adjustment
WARNING: Do not perform maintenance on machinery unless electrical power and air are disconnected, locked out or cannot be turned on by any person other than the individual performing the maintenance.
CAUTION: The delivery arm break-away mechanism is designed to prevent injury and machine damage in the event that an object interferes with the movement of the delivery arm. The break-away force should always be adjusted to the lightest possible setting that will consistently tie product.
When tying product, if the delivery arm breaks loose before reaching the string holder or the knot tied is too loose, the Break-away Spring Tension needs to be adjusted.
Using a 1⁄4\ hex wrench
Sign off on the adjustment
Access the parts list for your equipment in MaintainX.
Knife
300A00106
R.H. String Holder Plate
300A00119
L.H. String Holder Plate
300A00120
String Holder Tucker
300A00117
#1 Taper Pin (Not Required On Tandem Models)
900A00015
Knife
300A00106
R.H. String Holder Plate
300A00119
L.H. String Holder Plate
300A00120
String Holder Tucker
300A00117
#1 Taper Pin (Not Required On Tandem Models)
900A00015
Knife
300A00106
R.H. String Holder Plate
300A00119
L.H. String Holder Plate
300A00120
String Holder Tucker
300A00117
#1 Taper Pin (Not Required On Tandem Models)
900A00015
