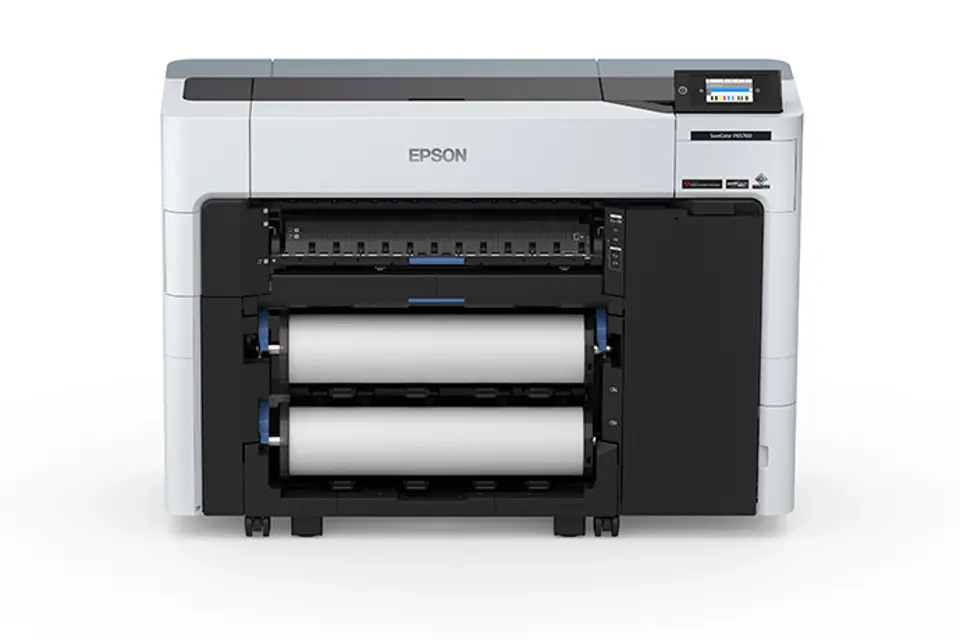

Epson Inkjet Printer SureColor P6570D

Warning: This procedure requires trained personnel only!

Is the printout grainy or blurry?

Are there dark or light horizontal bands on the printout?

Is the roll paper or cut sheet paper loaded in the printer?

Are the custom paper settings created in advance?

Select the paper feed adjustment method

If manual, select the adjustment setting

Warning: Do not use volatile chemicals, such as alcohol or paint thinners, to clean the product.

Remove all the paper from the product.

Turn off the product, wait for the LCD screen to turn off, and unplug the power cable from the electrical outlet.

Using a soft, clean cloth, wipe off any dust or dirt from the exterior of the product.

Note: For stubborn dirt, dampen the cloth with water mixed with a small amount of neutral detergent. Wring it out before using it to wipe the product's surface.

Dry the product with a soft, lint-free cloth when you are finished.

Sign off on the printer cleaning

Warning: Do not replace the borderless maintenance box while printing, otherwise ink may leak.

Warning: Do not touch the chip on the borderless maintenance box or you may prevent normal operation and printing.

Warning: Do not reuse a borderless maintenance box you have removed from the printer and exposed to air for a long period of time. The box will not absorb any more ink.

Check the LCD screen to determine which maintenance box needs to be replaced.

Upload a photo of the new borderless maintenance box from the package.

Lift up the paper support lock lever, then move the paper support down to position A (the lowest position).

Extend the paper output flap as shown.

With the paper output flap extended, lift up the paper support lock lever, then move the paper support up to position C (the highest position).

Pull out the borderless maintenance box carefully without tilting it.

Ruled Line Alignment: Adjust the position of the print head if your printouts are grainy or out of focus.

If your printouts become grainy or blurry, you notice misalignment of vertical lines, or you see dark or light horizontal bands, you may need to align the print head.

Before you align the print head, note the following:

• Alignment varies depending on the loaded media. Align the print head using the media on which you want to print and select the paper type that matches the paper in the printer. When adjusting using non-Epson paper, make sure you register the custom paper in advance.

• Run a nozzle check before you align the print head. If there are any gaps in the nozzle check pattern, clean the print head.

• Manually align the print head on any transparent or colored paper or on these paper types: Plain paper, Epson Enhanced Matte Poster Board.

• Make sure no direct sunlight enters the printer, or the alignment pattern may not be read correctly.

Aligning the Print Head Automatically Using the Product Control Panel

Checking the Nozzles Using the Product Control Panel

Is roll paper or cut sheet paper loaded in the printer?

Select Maintenance > Print Head Nozzle Check

Are there gaps in the printed nozzle check pattern?

If there are no gaps, select O to exit

If there are gaps or the pattern is faint, select X to perform head cleaning

Follow the instructions on the screen to clean the print head, check the nozzles, and repeat the process as necessary
