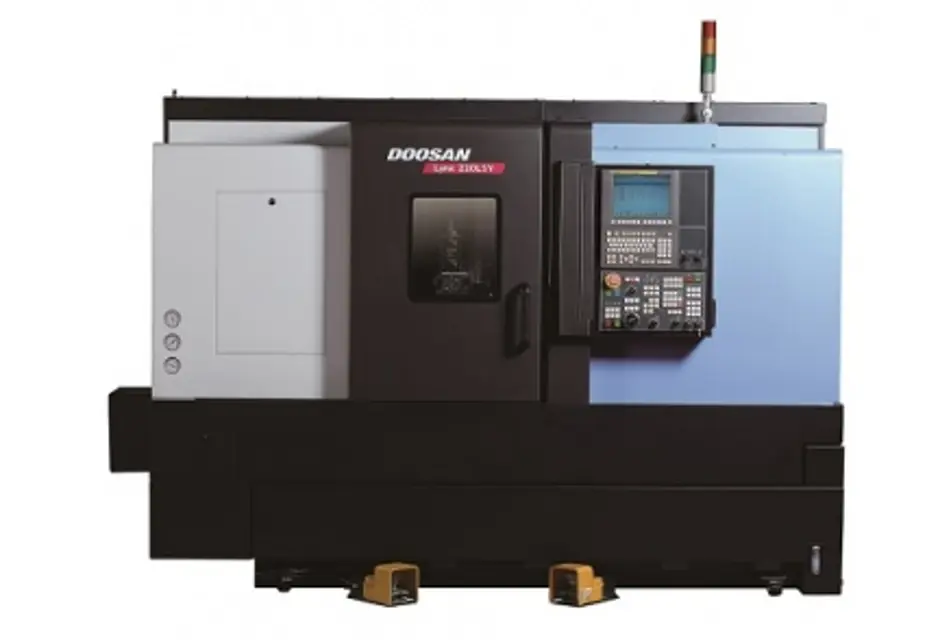

Doosan Lathe LYNX 220LA

Create an account to install this asset package.

Maintenance Plans for Doosan Lathe Model LYNX 220LA

Integrate maintenance plans directly into your work orders in MaintainX.

Initial 3 Month V-belt Adjustment

1. Adjusting V-belt Between The Spindle and Main Motor

• When the PK-belts are worn or loosen after using for a long period, it is advisable to tension them or replace them with new ones.

Adjust the belt tension as below procedure

1) Loosen the fastening bolts (1) of motor bracket.

2) Loosen the nut (2) under the adjusting block.

3) Secure the adjusting bolt (3) slowly.

4) Check the amount of deflection value (d) of PK-belt with tension (F1) as above table.

5) After getting the set value (5), secure the nut (2).

2. Adjusting PK-belt between the sub-spindle

Run this procedure

12 Monthly Lathe Inspection

Checking the oiling filters

Checking for oil leakage

Checking for damaged piping

Checking and adjusting the bed level using a level

Sign off on the lathe inspection

Run this procedure

Centeralized Lubrication Unit Adjustment

1) Adjusting pump delivery

• The delivery amount to each lubrication point is controlled by the metering type distribution valve with automatic intermitent lubrication pump, and no further adjustment is necessary.

• A metering type distribution valves are provided at the machine rear(inside the cover) and at the right side of the tailstock. The delivery condition of lubricating oil can be checked visually. (Use sufficient care when checking the delivery condition.)

2) Maintenance and countermeasure.

When no lubricating oil is delivered :

a) Oil level is low. Replenish the lubricating oil of the same brand.

b) The pump is at a rest: The pump operates intermittently.

The pump operation interval is set at 5 minutes.

c) The oil strainer is clogged. Clean the oil strainer at least every six months. (See Fig. E-8.)

Run this procedure

Alignment of Headstock (Main spindle)

Procedure : 1) Loosen the headstock clamping screws(M20, 5 pcs.).

2) Align the headstock

a) In A direction

• After loosening the adjusting screw(b), secure the adjusting screw(a). This shifts the headstock in the A direction.

b) In B direction

• After loosening the adjusting screw(a), secure the adjusting screw(b). This shifts the headstock in the B direction.

• Carry out this adjustment while reading the dial indicator applied at the front end of the test piece.

c) After the required accuracy is obtained, tighten the 5 screws for headstock clamping. Note that reading of the dial indicator applied at the test piece top end must not change.;

Run this procedure

1 Daily Lathe Inspection

Arrange the machine periphery in order, clean the machine and its periphery (especially, the floor)

Check the chuck unit and its periphery to scan for chips

Check for secure mounting of the top jaws

Check for smooth clamping/unclamping of chuck

Check the tailstock spindle to scan for chips

Check the tailstock body and tailstock spindle for smooth forward backward movement

Check for secure mounting of the cutting tools and the holder

Check the turrets and the cutting tools to scan for chips

Check for unusual operating sounds during tail-stock or sub-spindle movement

Run this procedure
