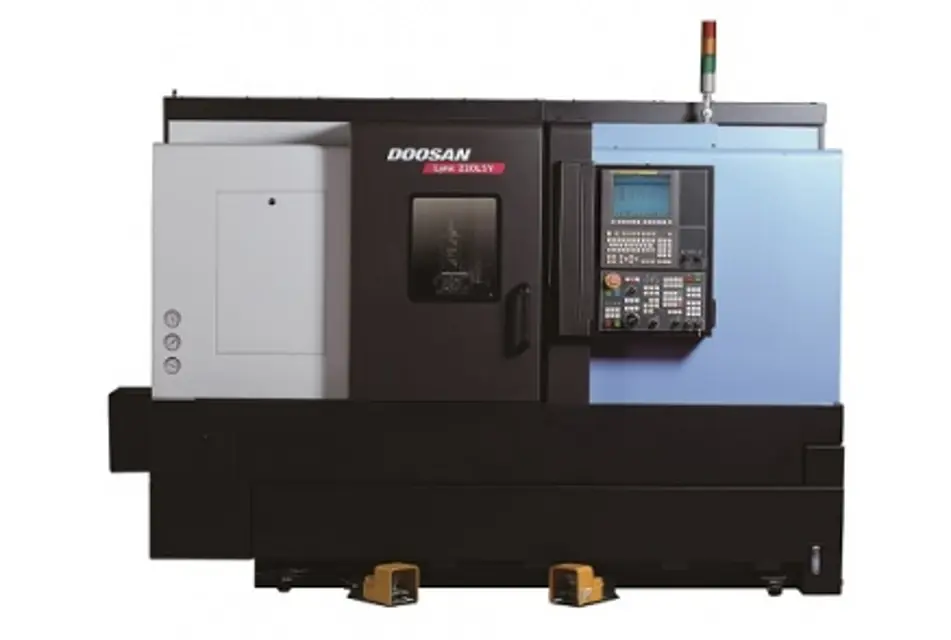

Doosan Lathe LYNX 220G
Create an account to install this asset package.
Integrate maintenance plans directly into your work orders in MaintainX.
6 Monthly V-belt Adjustment
1. Adjusting V-belt Between The Spindle and Main Motor
• When the PK-belts are worn or loosen after using for a long period, it is advisable to tension them or replace them with new ones.
Adjust the belt tension as below procedure
1) Loosen the fastening bolts (1) of motor bracket.
2) Loosen the nut (2) under the adjusting block.
3) Secure the adjusting bolt (3) slowly.
4) Check the amount of deflection value (d) of PK-belt with tension (F1) as above table.
5) After getting the set value (5), secure the nut (2).
2. Adjusting PK-belt between the sub-spindle
1 Daily Lathe Inspection
Arranging the machine periphery in order, cleaning the machine and its periphery (especially, the floor)
Checking the chuck unit and its periphery to scan for chips
Checking for secure mounting of the top jaws
Checking for smooth clamping/unclamping of chuck
Checking the tailstock spindle to scan for chips
Checking the tailstock body and tailstock spindle for smooth forward backward movement
Checking for secure mounting of the cutting tools and the holder
Checking the turrets and the cutting tools to scan for chips
Checking for unusual operating sounds during tail-stock or sub-spindle movement
12 Monthly Lathe Inspection
Check the oiling filters
Check for oil leakage
Check for damaged piping
Check and adjust the bed level using a level
Initial 3 Month V-belt Adjustment
1. Adjusting V-belt Between The Spindle and Main Motor
• When the PK-belts are worn or loosen after using for a long period, it is advisable to tension them or replace them with new ones.
Adjust the belt tension as below procedure
1) Loosen the fastening bolts (1) of motor bracket.
2) Loosen the nut (2) under the adjusting block.
3) Secure the adjusting bolt (3) slowly.
4) Check the amount of deflection value (d) of PK-belt with tension (F1) as above table.
5) After getting the set value (5), secure the nut (2).
2. Adjusting PK-belt between the sub-spindle
6 Monthly Lathe Inspection
Check the wipers for abnormalities such as damage
Check the strainers
Replace the hydraulic oil
Check for oil leakage and for damaged piping
Check the Air unit element and if necessary, replace
Check the electrical components for dirt and discoloration and check for loose terminal screws
Check for loose connector/terminals between units
Sign off on the 6 Monthly Lathe Inspection
