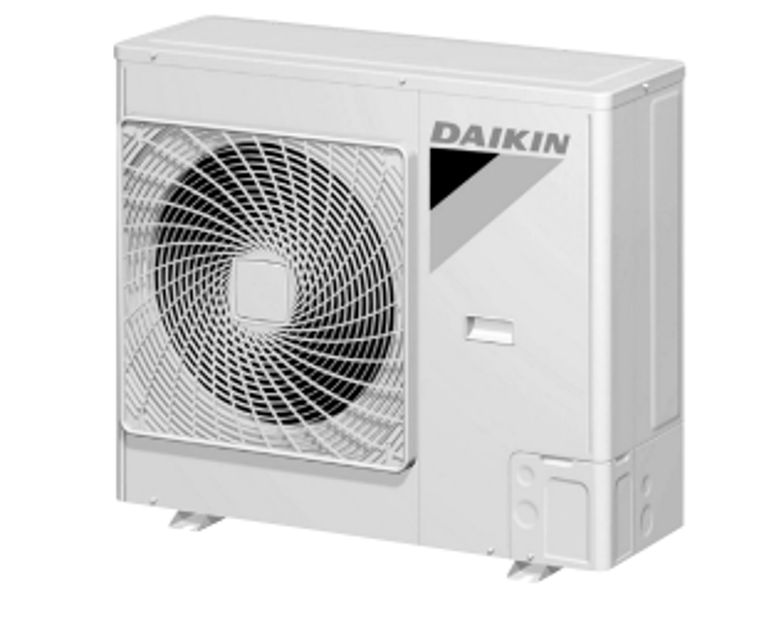

Daikin Cooling-Only Outdoor Unit RN60JV1G
Create an account to install this asset package.
Maintenance Plans for Daikin Cooling-Only Outdoor Unit Model RN60JV1G
Integrate maintenance plans directly into your work orders in MaintainX.
Electrical Component ASSY Removal
Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.
Outdoor Temperature Sensor Removal
Detach the outdoor temperature sensor.
Remove the sensor fixing plate.
Outdoor Temperature Thermostat Disconnection
Disconnect the terminals of the outdoor temperature thermostat (S1T).
Identify K1M: magnetic contactor.
Outdoor Temperature Thermostat Removal
Remove the left screw and slide the outdoor temperature thermostat to the left to remove it.
Compressor ASSY Removal
Safety Precautions
Wait for 10 minutes after turning off all power supplies before starting disassembly.
Ensure no burns occur from heated pipes and parts.
Ventilate the room if refrigerant gas leaks during work.
Prepare wet cloth to extinguish fire immediately if refrigerant oil catches fire.
Environmental and Safety Cautions
Ensure refrigerant gas is not discharged into the atmosphere.
Collect all refrigerant gas.
Restore piping by non-oxidation brazing.
Outdoor Fan / Fan Motor Removal
Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.
Disconnect the relay connector for the fan motor.
Unfasten the hook with a flat screwdriver.
Unfasten the 2 hooks and release the fan motor lead wire from the partition plate.
Ensure the fan motor lead wire is routed correctly during reassembly to avoid entanglement.
Remove the nut and remove the outdoor fan. Nut size: M8
Align the mark of the outdoor fan with the D-cut section of the motor shaft during reassembly.
Remove the 4 screws and remove the fan motor. Screw size: M5 × 16
Ensure to remove the lower screws first to prevent the fan motor from tilting or falling.
Outer Panel Removal
Pre-removal Safety Check
Have you waited for 10 minutes after turning off all power supplies?
Top Panel Removal
Remove the screws of the top panel
Pull the suction grille to unfasten the hooks
Lift up and remove the top panel
Suction Grille Removal
Unfasten the hooks with a flat screwdriver and remove the suction grille
Front Panel (2) Removal
Sound Blankets Removal
Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.
Sound Blanket Removal
Remove the sound blanket (top)
Remove the sound blanket (body)
Check for any tears in the piping ports on the sound blanket
Unlock
