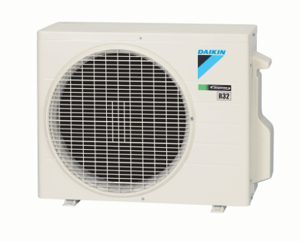

Daikin Cooling-Only Outdoor Unit RKS60JVMG

Wait for 10 minutes after turning off all power supplies before starting disassembly.

Ensure proper ventilation if refrigerant gas leaks during work.

Collect all refrigerant gas to prevent atmospheric discharge.

Ensure refrigerant gas is empty in the circuit.

Apply nitrogen replacement when heating brazed parts.

Provide a protective sheet or steel plate to shield peripheries from brazing flame.

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Protection Plate and Wire Fixture Removal

Remove the 2 screws and remove the protection plate.

Remove the 3 screws and remove the wire fixture.

Remove the 7 screws and remove the connecting wire and the power supply wire.

Remove the 2 screws and remove the earth / ground wire.

Pull out the outdoor temperature thermistor.

Remove the 4 screws of the right side panel.

Wait for 10 minutes after turning off all power supplies before starting disassembly work.

Fan Motor and Outdoor Fan Removal

Disconnect the connector [S70] (fan motor).

Release the clamp from the partition plate.

Release the fan motor lead wire from the groove and the 2 hooks of the partition plate.

Remove the nut and remove the outdoor fan. (Nut size: M6)

Remove the 2 screws of the fan motor fixing frame.

Ensure all power supplies are turned off for at least 10 minutes before starting disassembly.

Remove the main PCB [S12] for [HL4] [HN4] on filter.

Disconnect the PCB connector [S12] and pull out the clamp.

Disconnect the connector [S10] for [S11] on filter PCB.

Pull out the clamp. When reassembling, insert the clamp as below.

Disconnect the connectors [HN3] [HL3] for [HL2] and [HN2] on filter PCB.

Pull out the clamp. When reassembling, insert the clamp as below.

Warning: Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the 4 screws and remove the top panel.

Remove the 4 screws and remove the discharge grille.

Take care not to cut your finger by the fins of the outdoor heat exchanger.

Slide the discharge grille upward and remove it.

Check the number of hooks on the discharge grille.

Remove the 6 screws of the front panel.

Unfasten the 2 right side hooks.

Unfasten the 3 left side hooks and remove the front panel.
