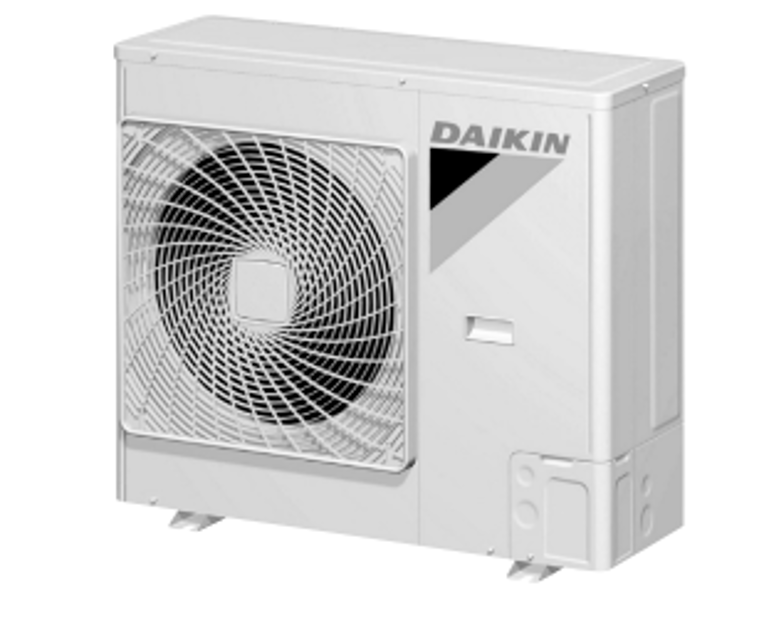

Daikin Cooling-Only Outdoor Unit ARM24MV2S

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Outdoor Temperature Sensor Removal

Detach the outdoor temperature sensor.

Remove the sensor fixing plate.

Outdoor Temperature Thermostat Disconnection

Disconnect the terminals of the outdoor temperature thermostat (S1T).

Remove the left screw and slide the outdoor temperature thermostat to the left to remove it.

If difficult to remove, loosen the right screw.

Compressor Capacitor Disconnection

Warning: Wait for 10 minutes after turning off all power supplies before disassembling.

Disconnect the relay connector for the fan motor.

Unfasten the hook with a flat screwdriver.

Unfasten the 2 hooks and release the fan motor lead wire from the partition plate.

Ensure the fan motor lead wire is routed correctly during reassembly.

Remove the nut and remove the outdoor fan.

Enter the nut size used for removal.

Align the mark of the outdoor fan with the D-cut section of the motor shaft during reassembly.

Remove the 4 screws and remove the fan motor.

Warning: Wait for 10 minutes after turning off all power supplies before disassembling work.

Remove the sound blanket (body)

Note any damage to the piping ports on the sound blanket

Wait for 10 minutes after turning off all power supplies before starting disassembly.

Ensure all heated parts are cool to avoid burns.

Is the room ventilated in case of refrigerant gas leak?

Prepare wet cloth to extinguish fire immediately if refrigerant oil catches fire.

Environmental and Safety Cautions

Collect all refrigerant gas to avoid atmospheric discharge.

Restore piping using non-oxidation brazing.

Warning: Wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the 8 screws of the top panel.

Pull the suction grille to unfasten the 3 hooks.

Lift up and remove the top panel.

Unfasten the 3 hooks with a flat screwdriver and remove the suction grille.

Remove the screw and remove the front panel (2).

Fit the 5 hooks when reassembling the front panel (2).

Remove the screw and remove the piping cover (front).

Fit the 3 hooks when reassembling the piping cover (front).
